ATTENTION:
For the automatic overtake of the floor and the ceiling to the calculation of
the U-value these have to be acquisited multilayered with the
corresponding catalog in the norm.
If they were not acquisited multilayered you have the possibility to register
these components with their layers with the U(k)-value calculation for
the calculation.
These layers will be used for the calculation only and will not be
overtaken into the graphic.
All used walls of the drawing will be overtaken into the window U(k)-value calculation.
Here you can change the buildup or the materials.
Confirm the Dialogue wall definitions with 'OK' after the acquisition of the floor / ceiling.
ATTENTION:
These changes will not be overtaken in the graphic.

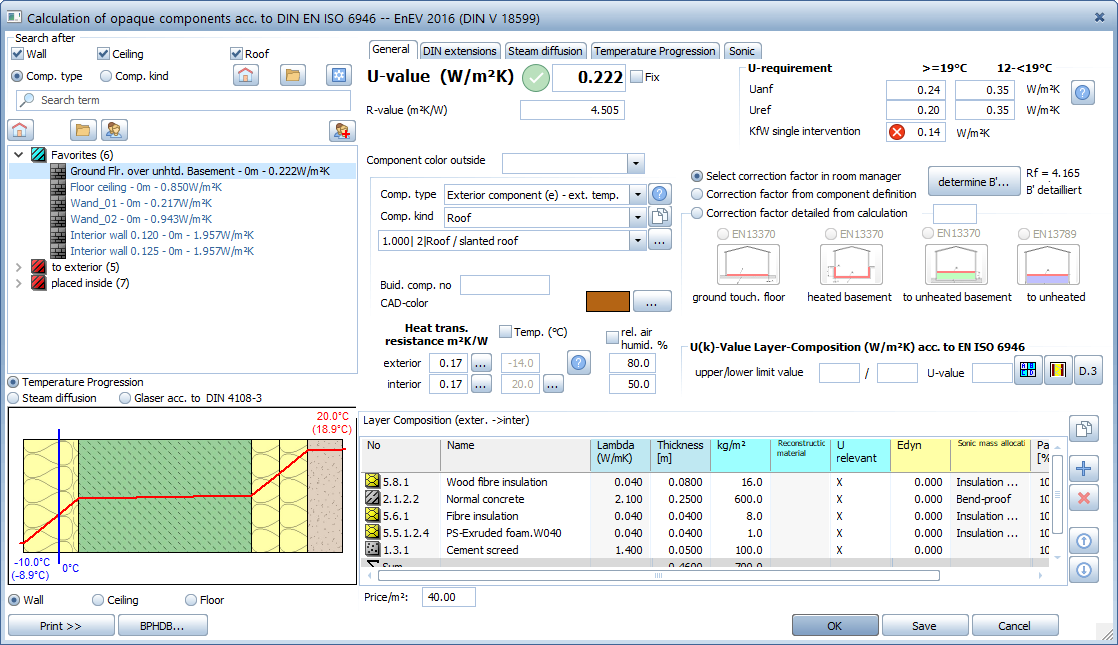

Selection of the floor:

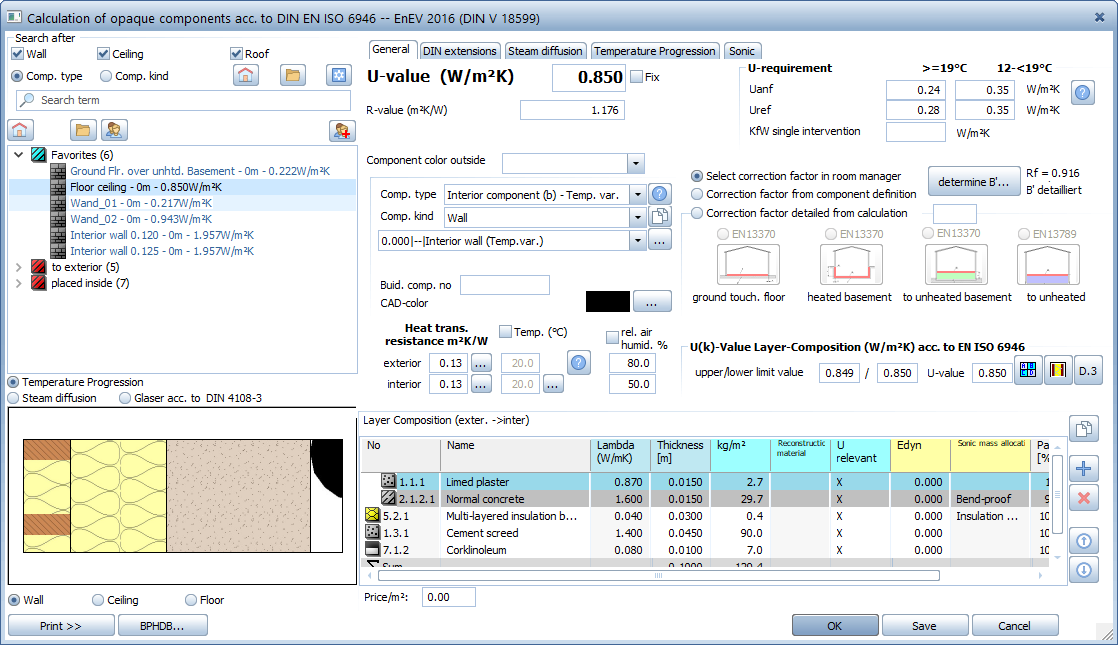

Selection of the ceiling:
