Function to change dimensions in ductworks.



Access to the command over



Command line: _CHANGEDIM





Assistant: lueftung_gew | Ventilation Service | changedim







Pick the parts that should be changed.

changedim1

changedim2

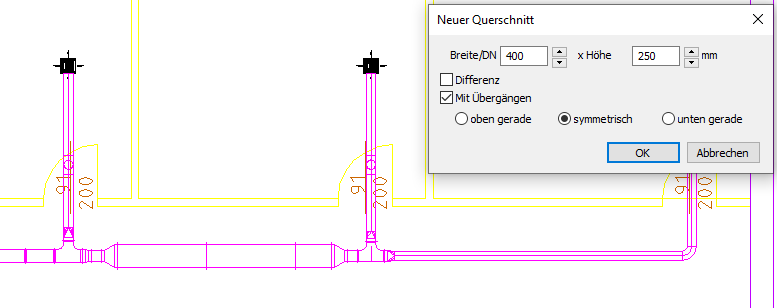

Edit the new dimension and confirm with "OK".



changedim3



The dimension is changed at the chosen ducts.

changedim4
