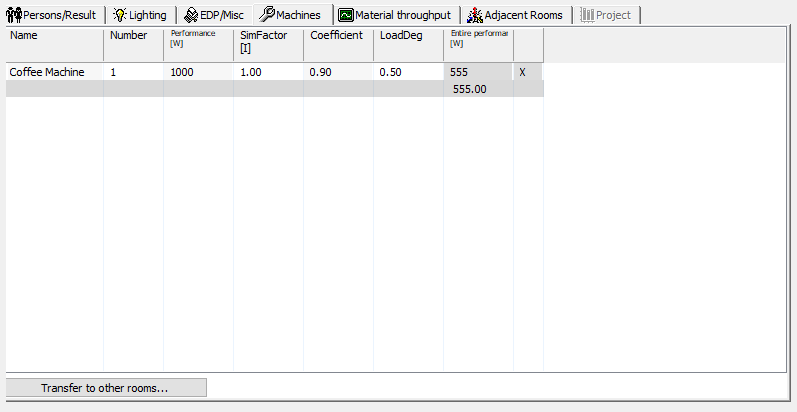

This index card determines the parameter for the incurred heat emission from electrical machines.
Dialogue-Options
Insert machine |
Over the context-menu machines can be inserted.
|
|
|---|---|---|
Quantity |
Number of the machines. |
|
Performance |
Effeciency of each machine in W (see machine label). |
|
SimFactor |
Simultaneous factor (amount of equipment that are in simultaneous operation, e.g. 1 of 2 pieces of equipment, simultaneous factor = 0,5) |
|
Coefficient |
Effeciency level of motor. |
|
LoadDeg |
Load level (if not known, enter 1). |

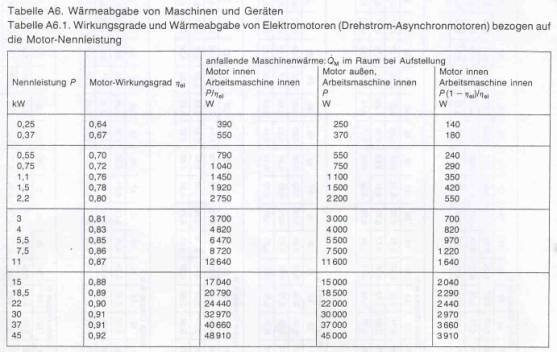

For individual equipment effeciencies, the following approximate values can be used
from Table A6.1, Annex A, VDI 2078:
