AX3000 Building Technology ACAD/BCAD



Function to insert a new window in the activated floor/room.



After clicking first choose the wall where the window should be inserted.

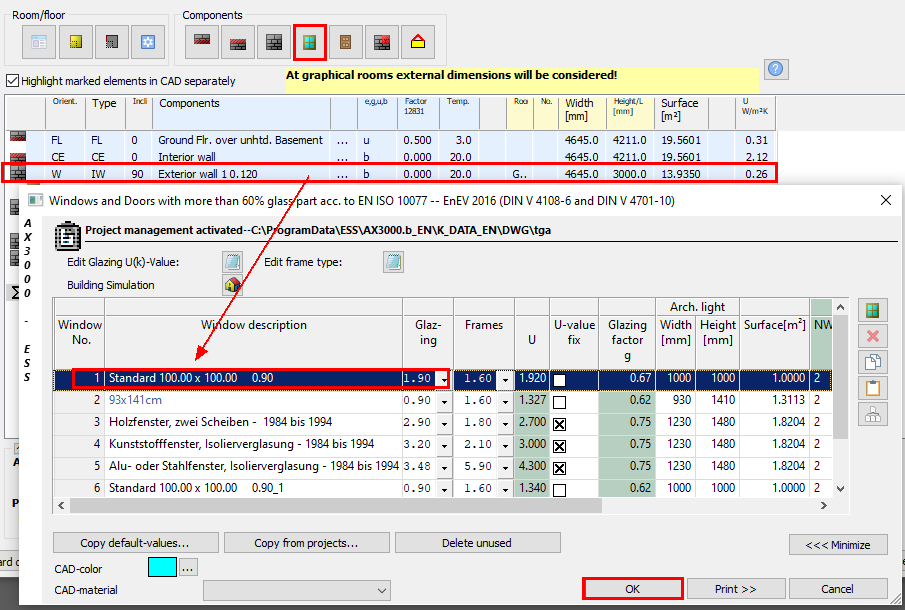

After that the Window definition opens:





Choose your window and confirm with "OK".





The new window is displayed:
