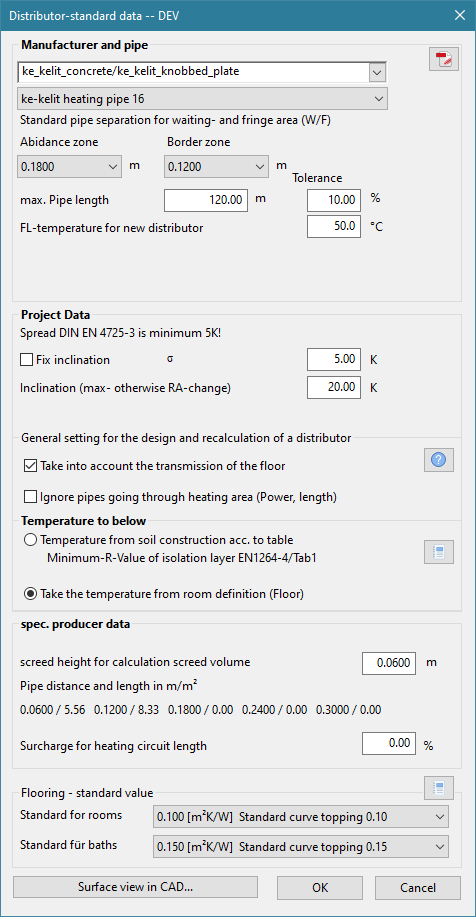

Here you can define default values for the whole project.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _FBH_2_DEFS
Assistant: |
| Floor heating |
Dialogue-Options
Option |
Description |
|---|---|
Manufacturer and pipe |
Select manufacturer and pipes.
|
Standard pipe separation |
Insert the pipe-separation for the zones.
|
FL-Temperature |
|
Project Data |
You can fix the inclination for the entire project here.
If you have more distributors with different inclinations, this will be edited directly at the distributor. |
General setting distributor |
|
Temperature to below |
The minimal thermal conductivity depends from the subjacent room (EN 1264/Tab1).
|
Spec. producer data |
|
Flooring - standard value |
The standard for rooms can be edited here.
|
Display |
The colors for Surface view can be defined here. |
