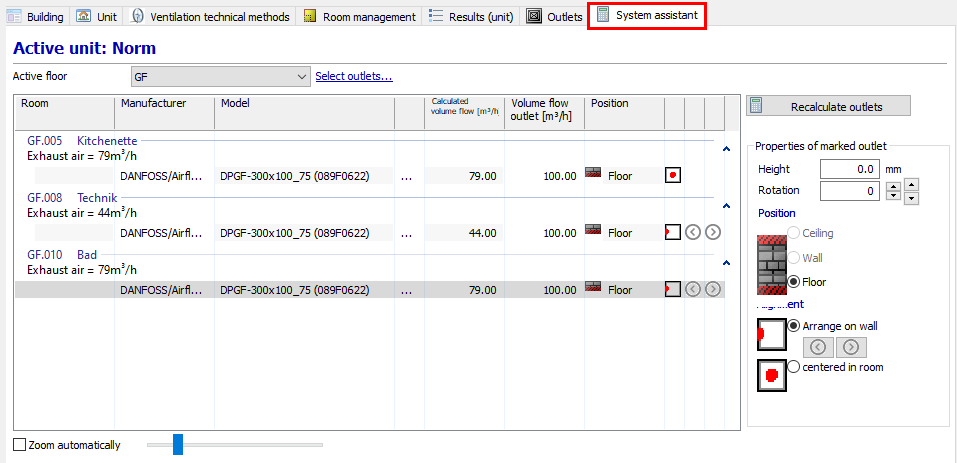

Function to configure the outlets.



WRL_anlagenassi



According to the necessary air amount, the needable number of outlets will be chosen.



If the rooms have been taken graphically, there is also the possibility to set the outlets directly in the graphic.

With properties / position / placement you are able to place the outlet at any  positions in the room.
