Show 2D-view



                                Access to the command over:



AutoCAD/BricsCAD





Command line: _RRANSICHT_NEW



Assistant: BeschriftungSchnitte | 2D-view | 2dansicht





This function creates a 2d-view of ductwork.

This view is set in Settings (Trade Definitions) and then placed onto the 2d layer.

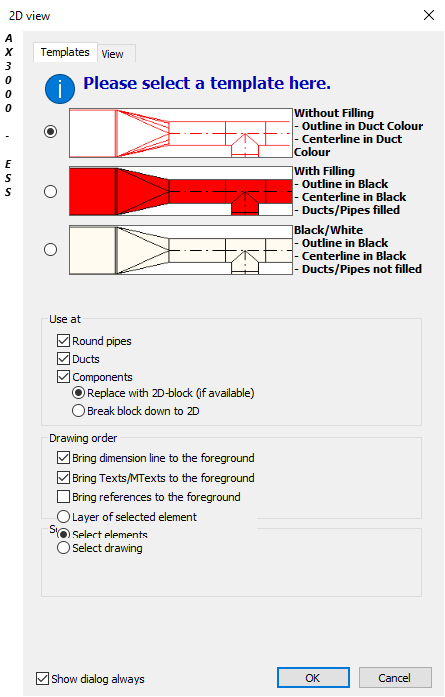

After selecting the function, following Dialogue opens:

2d_ansicht_2



Choose templates and view and confirm with "OK".

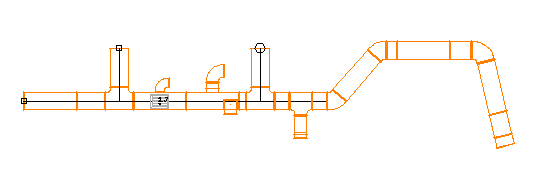

2d_ansicht_1



Pull a window over the ducts you want to create a 2d-view of.

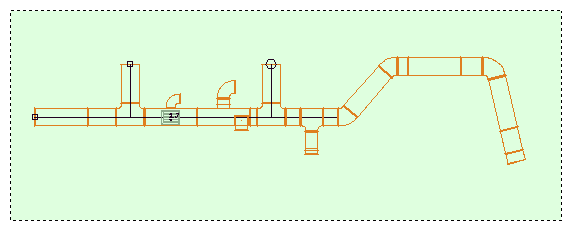

2d_ansicht_3



The selection is displayed.

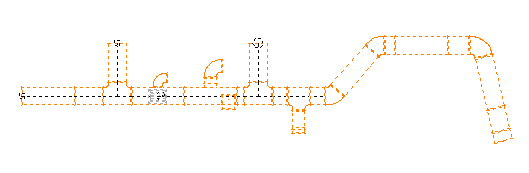

2d_ansicht_4



Confirm with right mouse-button.

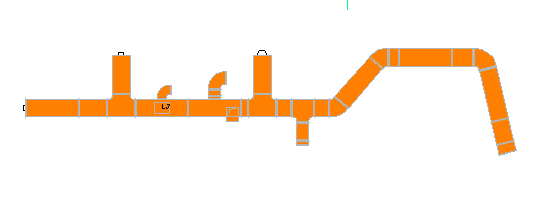

After the calculation the 2d-view is displayed.

2d_ansicht_5





Tipsandtricks

2D-View or several views:



Create the first 2d-view in layout. The corresponding layer will be set.

Change to next layout and give the new 2d-layer a name.

(e.g.: L_Supply_air_2d -> L_Supply_air_2d-Floorplan).

Repeat the function, to create a 2d-view of the current graphic view.
