Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _RRANSICHT_NEWG
Assistant: |
After selecting the function, following Dialogue opens:
Choose templates and view and confirm with "OK".
1. Pick plan-view reference point:

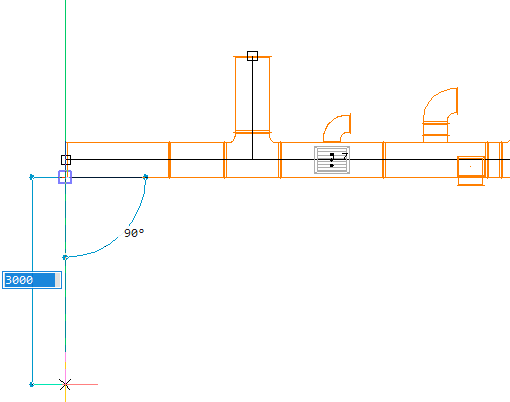

2. Pick 2D- placement point (related to the 1st point):

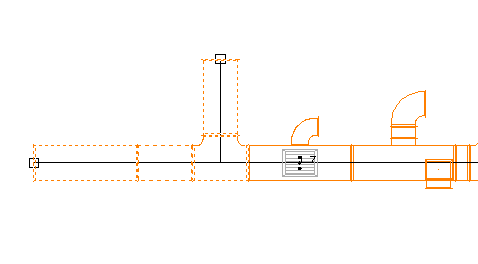

3. Select entities:
4. Confirm with right mouse-button.

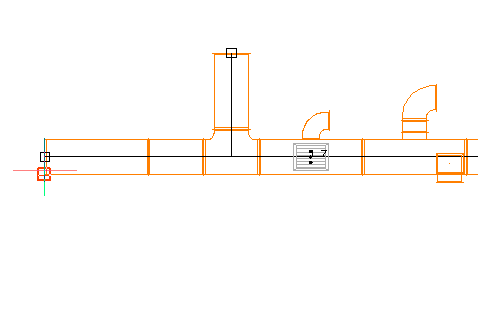

The plan-view detail is displayed:
