Create 3D-view

                                Access to the command over:

Command line: _AX_SCHNITT

Assistant: | 3D-view |

Example for creating a section:

1.

Activate the function.

Enter a name for the section and confirm with "Enter":

2.

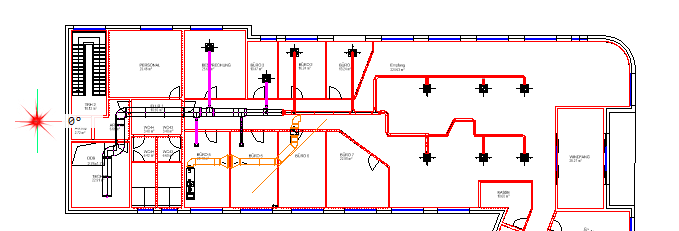

Pick first point:

If you want an orthogonal section, activate the function "ORTHO".

3.

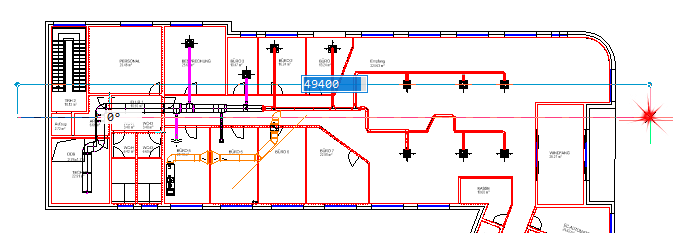

Pick second point:

4.

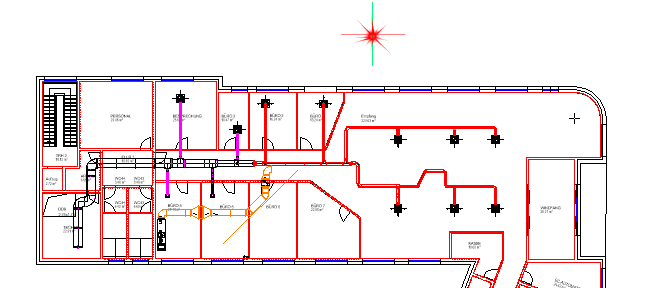

Pick direction point:

5.

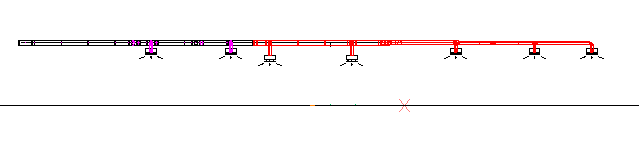

The section is displayed:

6.

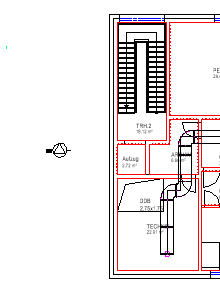

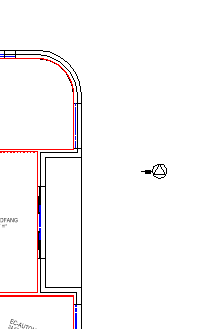

In the top view the the section-arrows are displayed with the section-name.

Change of view:

Wenn Sie die nun die Ansicht wechseln, müssen die 3d-Zuschneideebenen deaktiviert werden.

This can be done over following functions:

... DEFINE front clip plane

... Front clip plane OFF

... DEFINE back clip plane

... Back clip plane OFF

Restore views:

... Restore 3D-view

Restore a section through clicking onto a section-arrow.

...Create a list of 3D-views

Restore a section through choosing over list.

ATTENTION!

If you delete the section-arrows in the drawing, the section can not be reconstructed!
