Modify attributes of multiple blocks



                                Access to the command over:



AutoCAD/BricsCAD





Command line: _MODATTM



Assistant: BeschriftungSchnitte | Labeling | attrieditm







Block attributes for multiple blocks can be edited or changed here.

After executing the function, select a duct.

All block attributes are subsequently shown with corresponding parameters.

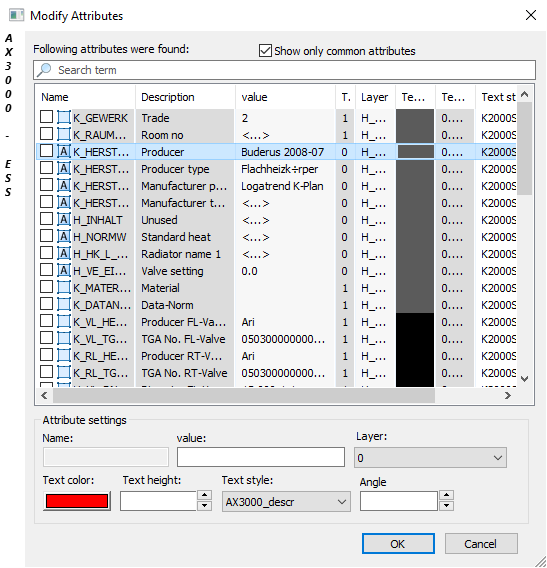

mehrere_Att_aendern





Dialogue-Options



Option



Description

Attribute settings

Name:

Defines attribute name and type.

unsichtbar...invisible attribute

sichtbar...visible attribute



attwert

Shows the value, Duct materials, insulation types, etc. of the attribute.



Attrlay

Shows the layer on which the attribute is placed.



attextf

Shows the color of the attribute.



atthoehe

Shows the text height of the attribute.



atttextstyle

Shows the text style of the attribute.





By clicking with the right mouse-button you are able to create new attributes

as well as you are able to delete existing ones.



kontextattri

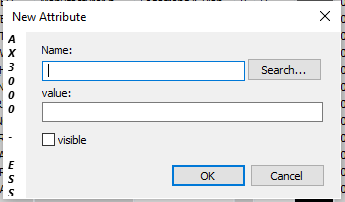

att_neu





Following attributes will be assigned as standard:



D_TRADE

D_BLOCKNAME

D_FORMULA

D_APIONT

D_DIMENSION





attention

CAUTION:

These attributes are necessary for program use and cannot be deleted!
