Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _BMAPL
Assistant:
|
With this function a layer can be assigned to blocks
This is necessary, for example, when a fire damper always has to be placed on the layer FD.
This function overwrites the Layer Management for the selected blocks.

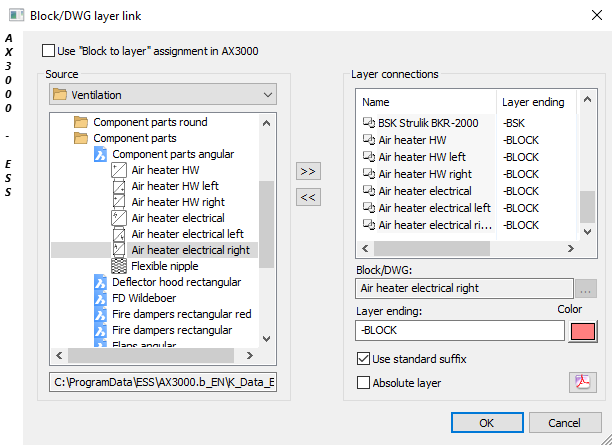

Dialogue-Options
Option |
Description |
|
|---|---|---|
Use "Block to Layer" assignment in AX3000 |
The defined blocks will be placed on the corresponding layers. |
|
Block Navigator |
Here you can select blocks from the corresponding trades.
With this function blocks will be integrated into the assignment list.
With this function blocks will be deleted from the assignment list. |
|
Layer ending |
If a block is activated in the assignment list a layer suffix can be entered here. |
