Set distance measurement and dimension



                                Access to the command over:



AutoCAD/BricsCAD





Command line: _MESSDIM



Assistant: BeschriftungSchnitte | AX3000 Management| distmess







The plan dimension and drawing unit can be set with this function.

The drawing unit can be set either in meters, centimeters or millimeters.

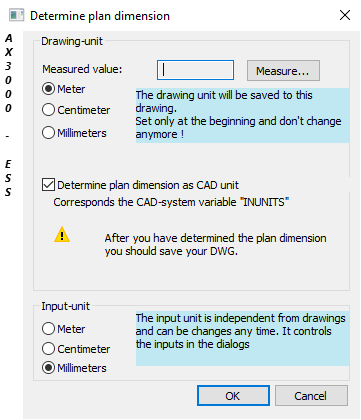

Dimension_aendern





Dialogue-Options



Option



Description

Drawing unit

This function helps to determine the plan dimension.

Select a length in the plan with the function 'measure...'.

This distance is shown in the field 'measured value'.

Enter the real length into the field 'nominal value'.

The program calculates the plan dimension and activates the corresponding dimension in the field 'plan dimension'.

Plan dimensions

Determines the drawing scale.

Input unit



The dimension for inputs.
