AX3000 - Trade line



                                Access to the command over:



AutoCAD/BricsCAD





Command line: _TRADELINE



Assistant: BeschriftungSchnittelueftung_gewwrl | CAD-functions | tradeline







Here you can change the settings for the display of trade lines.

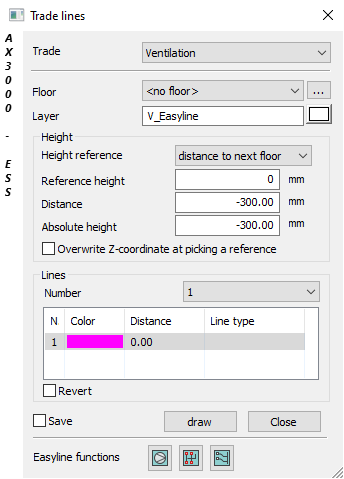

gewerke





Dialogue-Options



Option

Description

Trade

For the different trades predefined lines are deposited:

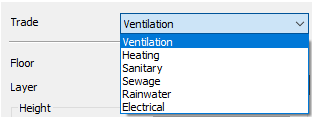

gewerksauswahl

Floor

Determination of the floor.

Layer

Change the color of the layer.

Height

The Height reference can be adjusted.



gewerkslin_hoehe



Referenceheight :



Distance:



Absolut height:



Overwrite z-coordinate at picking a reference:

Lines

Predefined lines are deposited.



Ventilation:

tradelines_01

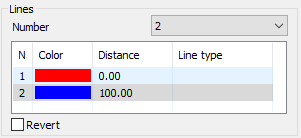

Heating:

tradelines_02



Number, color, distance and Line type can be modified.

Revert

The lines are inverted.
