Function to draw an elbow jump.
Access to the command over: |
AutoCAD/BricsCAD |
Allplan |
|---|---|
Command line: _EASYLIFT
Assistant: |
Toolbar: Heating | Heating Service | Toolbar: Ventilation | Ventilation Service | |
Example:

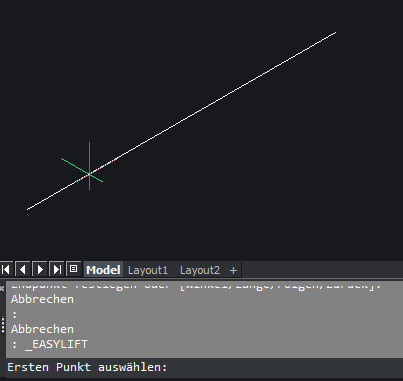

After starting the function pick the first point on the line.

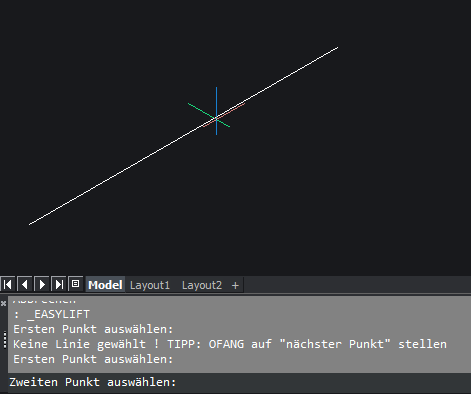

Pick the second point on the line.
The Dialogue "Height difference" opens.
Insert the value.

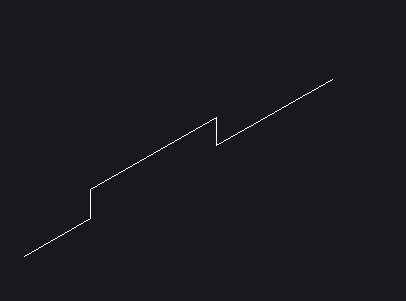

After confirming with "OK" the elbow jump is drawn.
