With this function more than one loadpoints can be set at a time.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _LOADPOINT_SET
Assistant: |
Therefore pick the roomsymbol or scan the area where the loadpoints should be set.

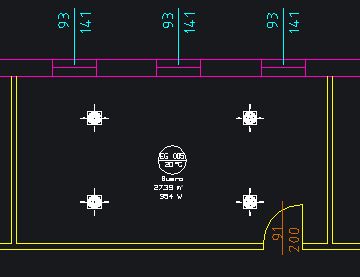

According to the inputs at Rows/Columns, the loadpoints are arranged in the room.
•Rows:
Number of rows for the loadpoints.
•Columns:
Number of columns for the loadpoints.
•Distance:
Distance between the rows of the loadpoints.
•Rotation:
Input for the direction of the loadpoints.
•Different types of volume flow calculation:

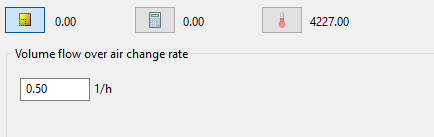

Volume flow over air change rate
Detailed calculation

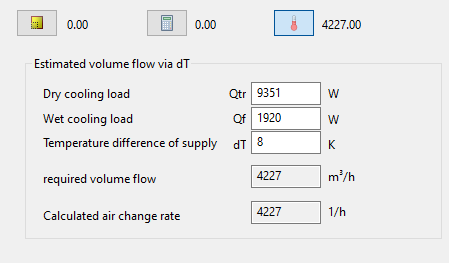

Estimated volume flow via dT
