You can define abidance zones, blind surfaces and border zones graphically in the ground view.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _FBH_AREA_DEFINE
Assistant: |
After calling up the function choose a room-symbol.

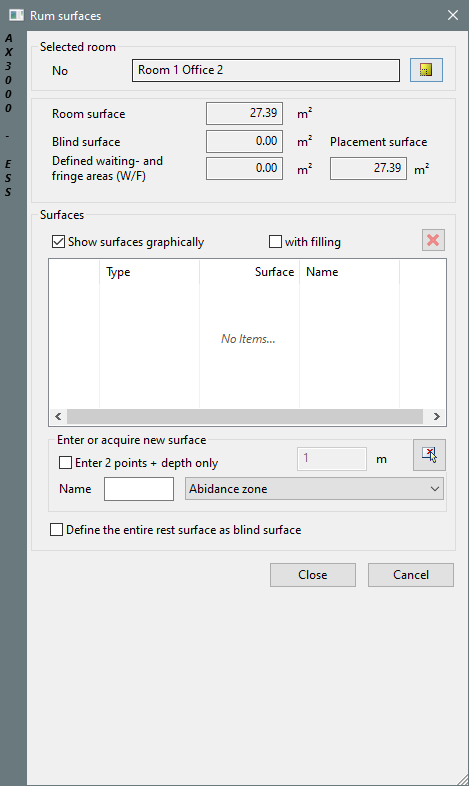

The Dialogue opens:
Dialogue-Options
Option |
Description |
|---|---|
Selected room |
Changing rooms. |
New surface |

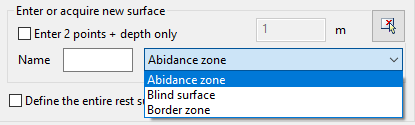

First choose the zone you want to define:
Over
|
Surfaces |

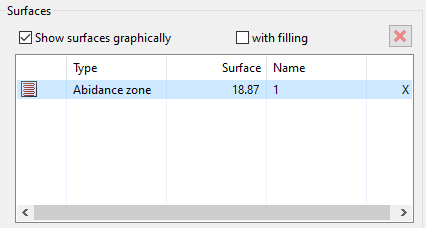

The area is shown in the Dialogue:

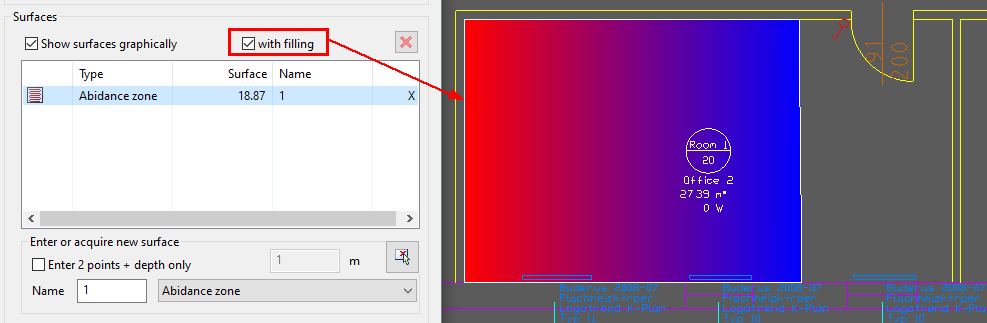

...and in the drawing, if activated:
|
you can scan the area in the drawing.
