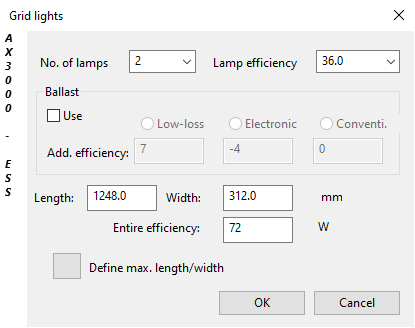

Grid lights

No.of lamps

Amount of light tubes.

Lamp effeciency

Effeciency of light tubes.

Ballast

Enters the ballast

Useage:

Activates the function.

An intermediate ballast can be selected:

LLB ... low-loss ballast

EB ... electronic ballast

CB ... conventional ballast

Length

Grid light length.

Width

Grid light width.

Entire Effeciency

The entire grid light effeciency:

(single tube effeciency x tube quantity +/- ballast effeciency)

Define max.length/width

With this table, the measurement limits can be edited.

CAUTION:

These files should only be set or edited by trained CAD_Administrators!
