Place heating component

                                Access to the command over:

Command line: _SETEBT3PH

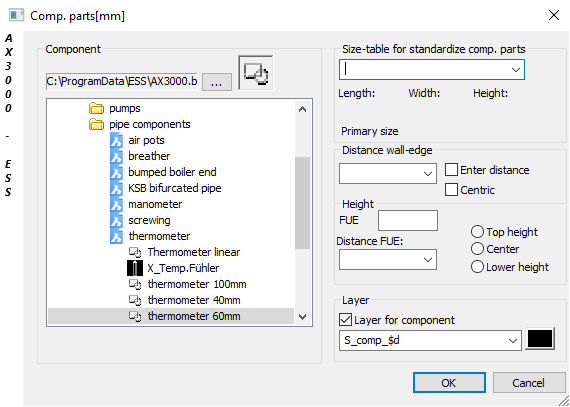

Assistant: | Heating Construction |

Option

Description

Component part

Here you can determine the block which should be placed.

The active block will be shown highlighted in blue.

The blocks are saved in the directory %\k_data\heizung\ BLOCKS.

ATTENTION:

These files are only allowed to be created from trained CAD-Administrators!

Here you can select another directory which contains the desired blocks.

Size table for standardised component parts

Es können die Abmessungen des Blockes entweder aus hinterlegten Attributttabellen gewählt oder eingegeben werden.

These dimensions and additional informations are saved as attribute tables in
folder %\k_data\heizung\ BLOCKS.

ATTENTION:

These files are only allowed to be created or edited from trained CAD-Administrators!

Here you are able to select a component part dimension from the size table.

Distance wall edge

Here you can determine the distance from the object to the next wall edge (end point).

Enter distance:

With this function the object can be placed on the screen.

Afterwards the placement (wall side) and the distance from the placement point will be determined.

Centered:

Places the object centered between the both picked points

Height

Is used to determine the height of the object in the building.

FUE (Floor upper edge):

This height accords the finished floor of the particular floor.

Distance FUE:

Is used to enter the distance from the floor upper edge to the object.
Alternative you can determine this distance to the upper- center or lower edge of the object.

Layer

Here you can determine the layer for the heating component parts.
