Place nipple  Heating



With this function, a branch can be connected to a ductwork laterally.

Branches can be rectangular or round. The cross section can be manually entered or taken from the duct tables.





                                Access to the command over:



AutoCAD/BricsCAD





Commandline: _KANALSTUTZEN



Assistant: heiz3 | Heating construction| stutzen

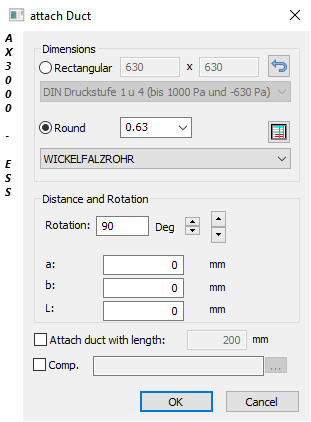

Stutzen_re



Dialogue-Options



Option

Description

Dimensions

Rectangular:

Tells the section of a rectangular pipe.



Round:

Tells the sections of a round pipe.

Distance

All values can be inserted, positive or negative.

"0" is conform to the middle of the duct.

The values are shown in the graphic as preview.



a - Is the displacement of the nipple along the duct-width (A=duct-width as in norm).



b - Is the displacement of the nipple along the duct-height (B=duct-height as in norm).



L - Is the displacement of the nipple along the duct-length (L=duct-length as in norm).

Rotation

Shows the new direction of construction in degrees.



This function turns the direction of a nipple on a rectangular duct over this both

buttons Button_up_grossButton_down_gross according to the four main-directions (up, down, left und right).



If setting a nipple onto round ducts the new direction can be inserted free or over the buttons Button_up_grossButton_down_gross as told above; or over the buttons Button_up_kleinButton_down_klein in any direction.

Attach duct with length

The duct-length can be optionally entered.
