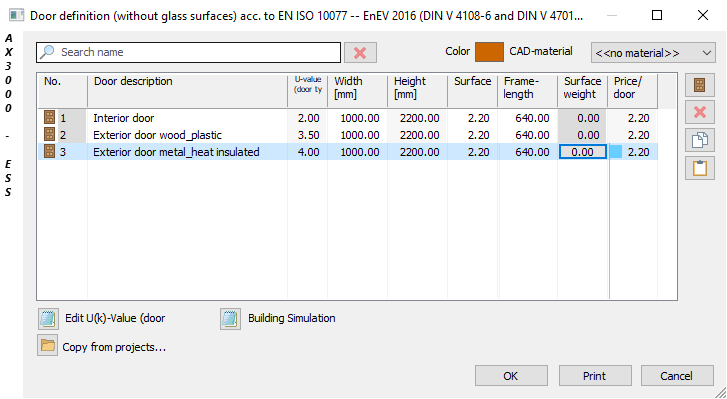

Door definition

                                Access to the command over:

Command line: _TUERDEF

Assistant: | Building physics|

No.

Consecutive numbers for door designation.

Door description

Description of each door.

Description must be plain and concise.

U-value

(door type)

Shows the U-value of each door. This value can be selected or edited from the table.

Width / Height / Surface

Door width, height and surface area.

Frame length

The frame-length is normally the circumference of the door and is automatically selected from the program.

Should a special door geometry not give a proper circumference, it can be manually entered.

Color

Here you are able to set the door drawing color as a defined object.

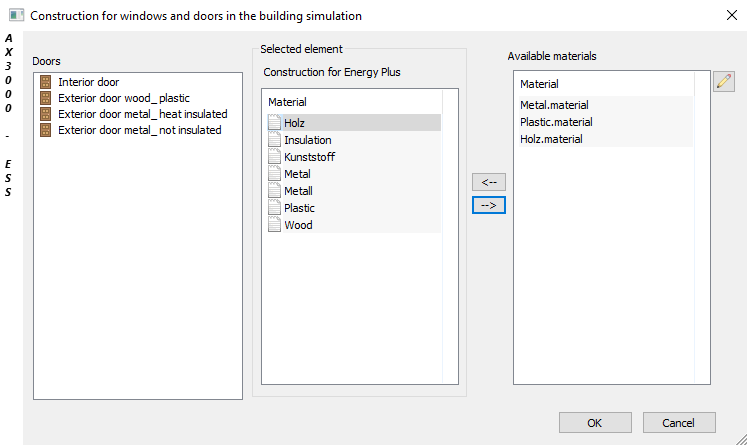

Here you can edit the u-values.

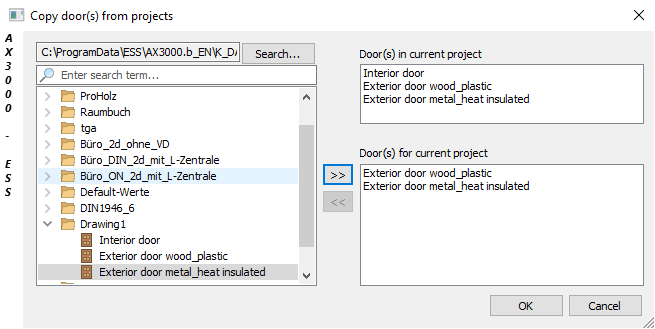

Doors can be copied from other projects.
