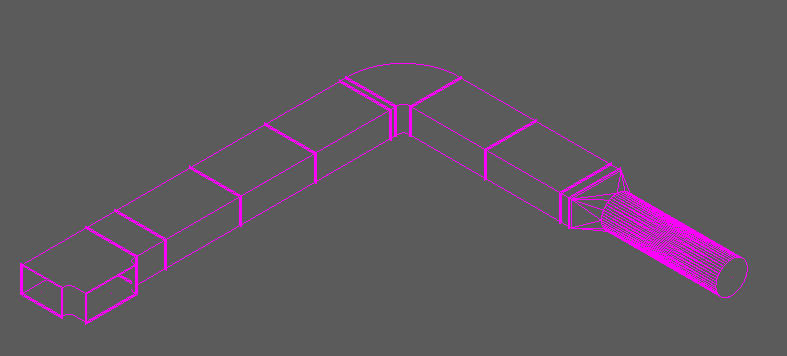

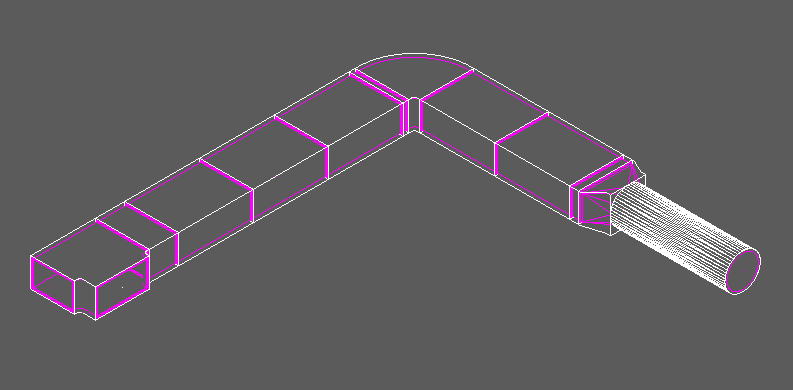

Insulate (all trades)

                                Access to the command over:

Command line: _DAEMMUNG

Assistant: | Ventilation Service |

Assistant: | Heating construction|

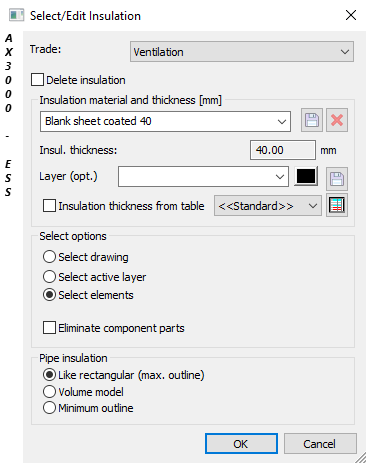

Trade

Choose the trade.

Delete insulation

With this function you can delete an existing insulation.

Insulation material

Here you can choose the insulation.

The insulation-types are saved in the directory %k_data/lueftung/cmbdata.txt.

These directories may only be edited by CAD-Administrators!

Button for saving own insulations.

For a new insulation you only have to insert a name and then press this button.

Button for deleting insulations.

The active insulation can be deleted.

Layer (opt.)

Possibility to create a new layer for the insulation.

If the new layer-name starts without * an absolut layer is generated.

If the new layer-name starts with * the duct/pipe layer will be complemented with the following name.

Thickness from table

The thickness will be chosen from a table, addicted to the diameter of the duct.

Select options

eliminate component parts - You can deactivate the insulation of component parts.

Pipe insulation

Changes the display in CAD.
