Ducts can be moved and positioned in a vertical direction.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _DUCTPOS
Assistant: |

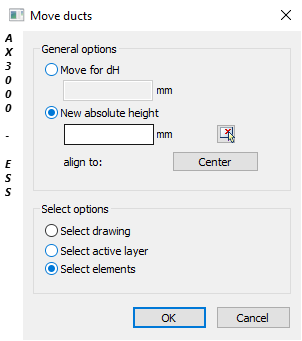

A Dialogue opens:
Dialogue-Options
Option |
Description |
|---|---|
General options |
Here you can enter the positioning.
Move for dH It will be moved at a difference. + ... move up - ... move down
New absolut height Ducts are moved to a new absolute height. According to the setting, the function 'align to:' the ductwork is moved to the upper/center/lower edge of the desired height. |
Selection options |
Duct selection. |
