Check position number in current layer



Function to check the used position numbers in a layer.



                                Access to the command over:



AutoCAD/BricsCAD





Command line: _CHECKPOS



Assistant: lueftung_gew | Ventilation Service | posil2







Fittings will be positioned according to AX3000 standard to the defined start value parameters.

This function is used when fittings are downloaded through the IFC-Link or when the position numbers are manually edited, in order to test whether other fittings are assigned the same position number or not, and to prevent conflicts within the parts list.

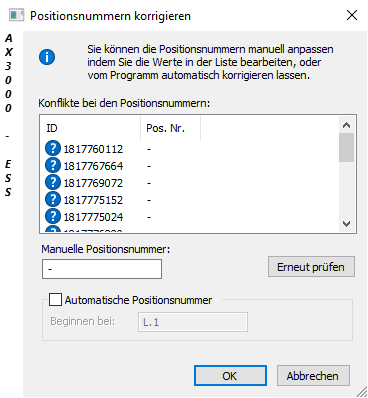

A Dialogue opens:



pos_test



attention

This window will only be opened if further fittings of the system have assigned the same position number.





Dialogue-Options



Option

Descpription

Conflicts at Position Numbers



A list of fittings with same position numbers will be shown.

Fragezeichen - Fittings with colliding position number

ok - corrected position numbers

Position Number



Field to assign a not already used position number to a fitting in the collision field.

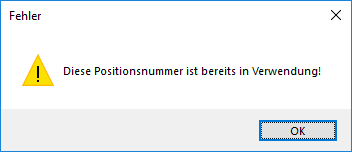

The symbol will be changed. If an already used position number is entered the following Dialogue will be opened:

bereits_Verwendet

Automatic



The found duct parts in the actual layer will be numbered consecutive starting with the entered position number.

All existing position numbers will be overwritten.
