Residential ventilation Manager

AutoCAD/BricsCAD

Command line: _LKONZEPT_MANAGER

Assistant: | Roombook (RVS) |

Over room-areas and the allocation of usage is verified if a ventilation system is needed.

After the selections of the ventilation system it is also possible to calculate ventilation-numbers, size outlets and dimension systems.

Symbol	Name	Description

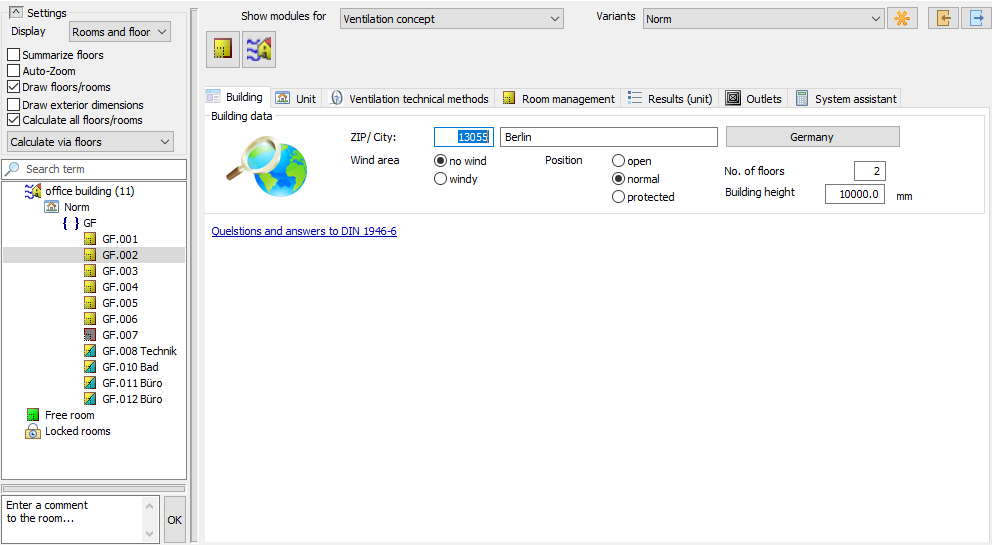

	Building	Input of the building data.
	Unit	Details to units, creation of new units.
	Ventilation technical methods	Input of ventialtion technical methods of the building.
	Room-Management	Capture and allocation of rooms.
	Results (unit)	Display of necessary airflows and ventilation-numbers.
	Outlets	Proposal for outlets for airflow, supply air and exhaust air.
	System assistant	Assistant for dimensioning of outlets.

Access to the command over:
