This is a fabrication interface that allows constructed ductwork to be sent directly to a compatible plasma cutting maschine.
This submittal file can be read by the plasma cutter software for optimizing cutting.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _KLIMAX
Assistant: |

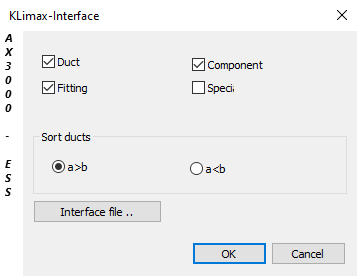

Dialogue-Options
Option |
Description |
|---|---|
Duct |
Only ducts are on the fabrication list. |
Component part |
Only component parts will be on the fabrication list. |
Fitting |
Only fittings will be on the fabrication list. |
Special fitting |
Submittal of special fittings. |
Sorting Ductwork
|
Sorts ductwork during the issuance submittal.
a>b - Ductwork are so adjusted, that the duct width is larger than the duct height.
a<b - Ductwork are so adjusted, that the duct height is larger than the duct width. |
Example:
Click here to view.
