Lockformer interface

This is a fabrication interfae that allows constructed ductwork to be sent directly to a compatible plasma cutter.

This submittal file can be read by the plasma cutter software for optimizing cutting.

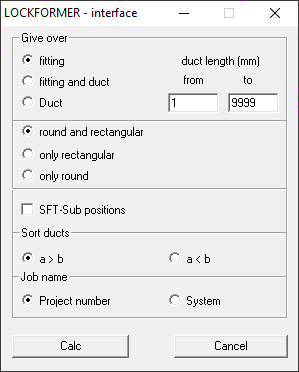

Dialogue-Options

Give over

Configures the parts for fabrication.

Fitting - Only fittings will be on the fabrication list.

Fitting and duct - Fittings and ducts are on the fabrication list.

Duct - Only ducts are on the fabrication list.

Duct Length (mm) - During the ductwork submittal, the duct minimums and maximums can be configured. The submittal unit are millimeters.

These settings can be used for submitting both ductwork and fittings.

Round and rect. - Only round and rectangular ducts are on the fabrication list.

only rect. - Only rectangular ducts are on the fabrication list.

only round - Es werden nur runde Kanalteile ausgegeben.

SFT - Submittal of special fittings.

Sorting Ductwork

Sorts ductwork during the submittal.

a>b - Ductwork are so adjusted, that the duct width larger is as the duct height.

a<b - Ductwork are so adjusted, that the duct height larger is as the duct width.

Job name

The job description of the system unit to be submitted can be selected here.

Commission No - The name and commission number for the submittal is given here.

System Unit - The layer name of the system unit for submittal is given here.
