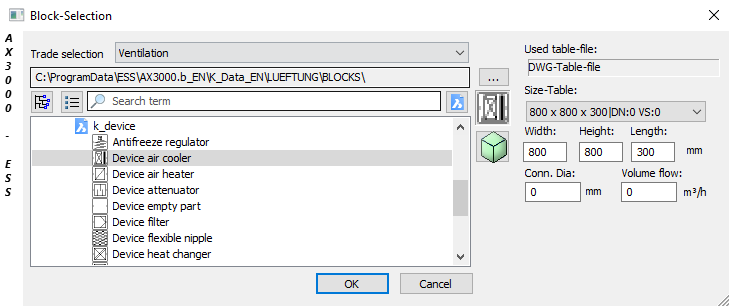

Block Selection



A block can be selected from the main data.



L_VD_blockauswahl



Dialogue-Options



Option

Description

Trade

Select th trade:

gewerksauswahl_02

Block selection

L_VD_blockauswahl_butt

Button to change the main data register.



L_VD_blockauswahl_check

The current article register is shown.

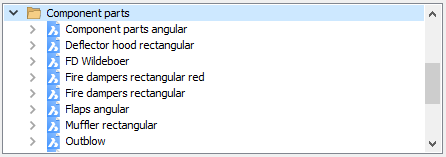

L_VD_blockauswahl_fenster

Window to select the article (block).



L_VD_blockauswahl_vorschau

Active block preview.

Used table-file



Shows if the specific table is a block or a DWG file.

Size Table



Selects the size from the table.

Width / Height / Length



Selected component part dimensions from the table.

These dimensions can also be manually set.

Connection-DIA



Sets the connection diameter.

Volume Flow



The volume flow for calculating the load point in m³/h.



attention Artikelblöcke und Grössentabellen dürfen nur von ausgebildeten CAD-Administratoren angelegt oder editiert werden!
