Connects Easyline Ventilation load points to an Easyline System.
The lateral connection will realized with an elbow, and with any selected angle.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _EASYCONNECTB
Assistant: |

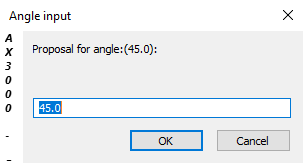

Activate the function, select the connection angle and load points that should be connected to the partial system line.
Confirm and select the linegroup.
CAUTION!
When connecting objects or load points, the UCS must be set to 'world'.

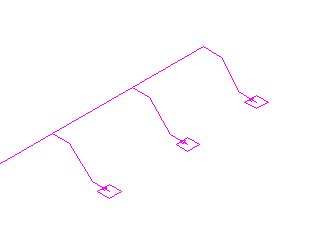

Example of connection:
