Insert component into line - Ventilation



With this function you are able to connect a component part to a linegroup.



                                Access to the command over:



AutoCAD/BricsCAD





Command line:_EASYINSERT



Assistant: lueftung_gew | Ventilation Easyline Service | easyinsert

Assistant: spr-small | Sparger Easyline Service | easyinsert

Assistant: wrl | RVS Easyline | easyinsert

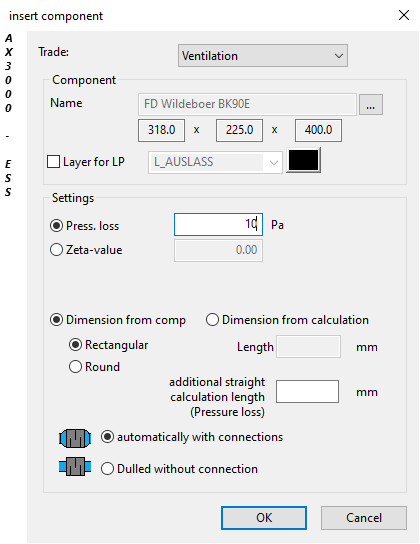

EBTinStrang



Dialogue-Options



Option

Description

Trade

Selects the trade.

Component Part



The component part which should be placed can be selected from the trade block.



blockauswahl

The block-selection is opened.

Settings

Additional component part information can be saved.
