Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _BESAB
Assistant: |

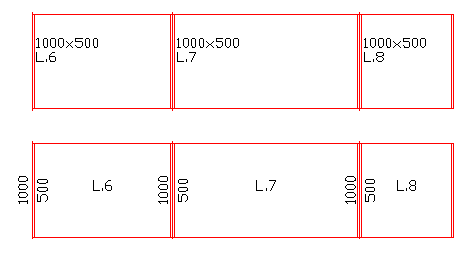

This function is used to change from standard-labling to labeling on flange.
To avoid eventually overlapping of dimension-labeling and position-labeling, the
position-labeling is automatically set to the center of the duct.

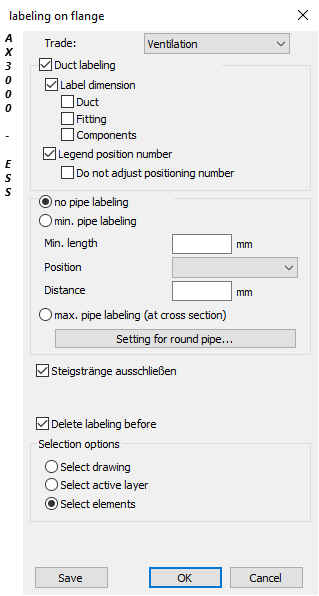

Dialogue-Options
Option |
Description |
|
|---|---|---|
Trade |
|
|
Duct labeling |
Activates or deactivates the labeling of positionsnumbers.
Activates or deactivates the labeling of fittings.
Activates or deactivates the labeling of position numbers.
If activatig this function, the labeling will not be aligned to the duct. |
|
Pipe labeling |
No pipe labeling will be displayed.
A minimal pipe labeling will be displayed. The position of the labeling can be edited.
Opens the Dialogue "Trades labeling". Here you can choose the settings for pipe-labeling(DN25, Ø25,..). |
|
|
Steigstränge werden nicht beschriftet. |
|
|
The existend duct-labeling is deleted, before relabeling. |
|
Selection options |
|
