Function to define circuits and to connect component parts (switches, lights,...) with distributors.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _CONNECT_EBTVERT
Toolbar Elektro |
|

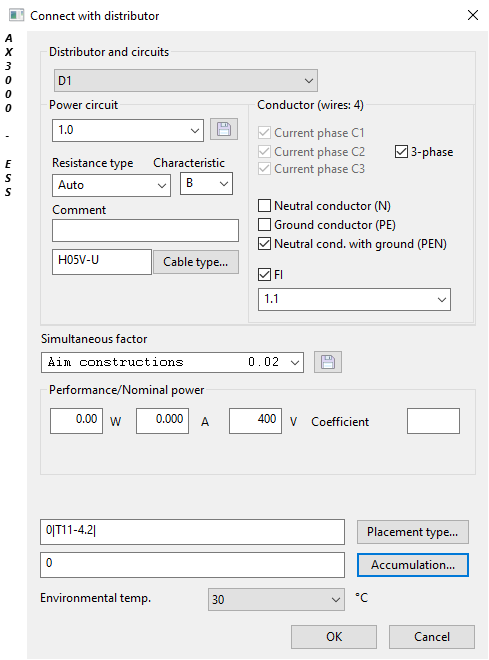

Dialogue-Options
Option |
Description |
|
|---|---|---|
Distributor and circuits |
Here you can choose from all named distributors. The circuit is attached to the chosen distributor. |
|
Power Circuit |
Name of the circuit.
Button for saving the circuit-name.
Resistance type:
Characteristic:
Cable type: Opens the list for the cable type... |
|
Conductor |
Here you define the conductors of the circuits.
FI: Here you can attach a FI to the circuit. |
|
Simultaneous factor |
Simultaneous factor for component parts within one circuit. |
|
Performance/Nominal power |
Performance of the component parts. |
|
Placement type |
Opens the list for the Placement type... |
|
Accumulation |
Opens the list for accumulation... |
|
Environmental temperature |
You can choose the environmental temperature from a list. Values between 10 and 90°C. |
After clicking the function select the parts that need to be connected.
Confirm with OK.
