Funktion zum Ergänzen der für die Berechnung notwendigen Attribute.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _DEFINE_VERTNAME
Toolbar Elektro |
|
Muss für alle Verteiler, die mit der Funktion Elektro-Einbauteil setzen abgesetzt wurden angewendet werden.

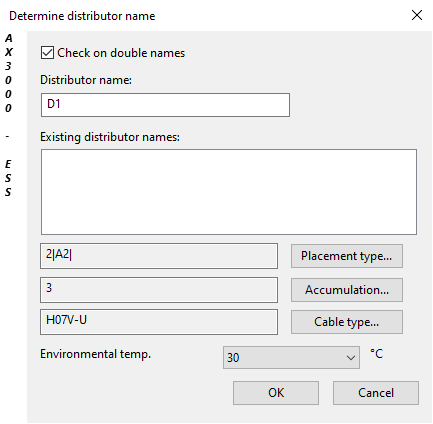

Dialogue-Options
Option |
Description |
|
|---|---|---|
Check on double names |
If activated it is not possible to enter already used distributor names. |
|
Distributor name |
Enter the distributor name. |
|
Existing distributor names |
Already used distributor names are shown here. If you click on a distributor in this list, it will be marked in the drawing. |
|
Placement type |
Opens the list for the Placement type... |
|
Accumulation |
Opens the list for accumulation... |
|
Cable type |
Opens the list for the cable type... |
|
Environmental temperature |
You can choose the environmental temperature from a list. Values between 10 and 90°C. |
