With this function you can evaluate an elektro-system.
Access to the command over
Command line: _EASYLINE_SHOW_E
Toolbar Elektro |

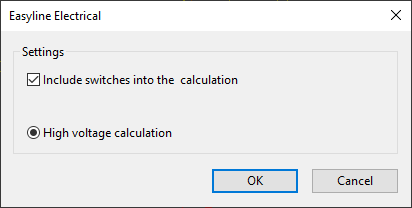

After selecting the function you can choose the component parts.

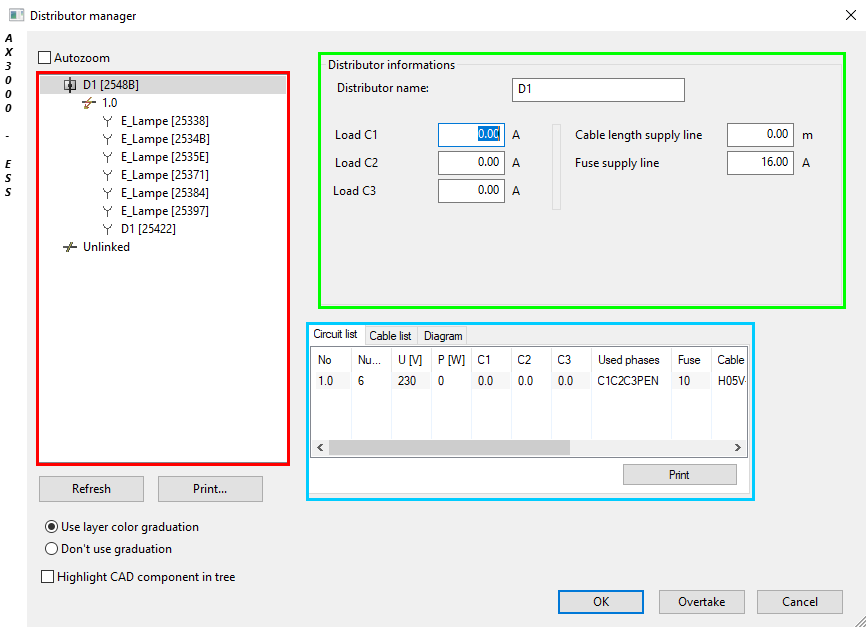

The Dialogue consists of three parts:
- Navigator (to show the structure of the distributors)
- Informations about the marked part
- Overview (circuit list, cable list, diagramm)
Dialogue-Options
Option |
Description |
|
|---|---|---|
Navigator
|
All existing distributors, circuits and component parts are shown in this navigator. By clicking on an entry with the right mouse-button, the context menus for distributors, circuits and component parts will be opened. Attaches can be made over "Drag and Drop". Unlinked parts can be connected to circuits.
Use layer color graduation: With this function a detailed representation for distributor-groups and -levels is possible. If you click on a socket-outlet with the right mouse-button and activate the function "Show course to main distributor", the course will be shown graphically.
Autozoom: If activated, a marked component part in the distributor-manager will automatically be shown zoomed in the drawing.
Highlight CAD component in tree: If activated, a marked component part in the drawing will be highlighted in the navigator of the distribution-manager.

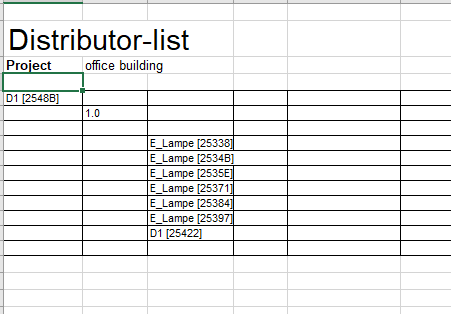

Print...:
|
|
All specific informations to the marked part in the navigator are shown here. It changes with the kind of the component-part. |
||
Overview
|
subdivided in three parts: - Circuit list - Cable list - Diagram

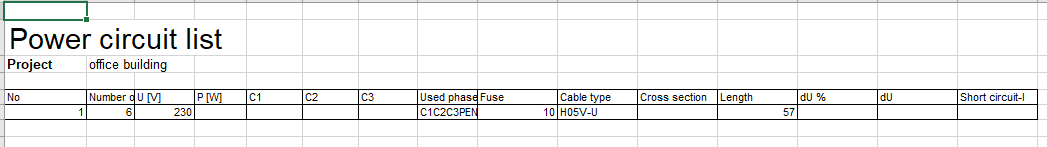

Print...:
|
