List of elements (construction)

With this function, a list of electrical cable lines can be made.



                                Access to the command over:



AutoCAD/BricsCAD





Command line: _EXCELLISTE



Toolbar Elektro | electro_02







electro_40

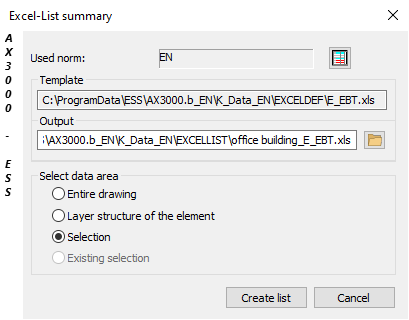

Dialogue-Options



Option

Description

Norm used



The used norm is shown here.

This Norm can be set with the function current Norm.





fnr_icon

Function to view or change the Formula Numbers according to norm.

Template



The selected example will be shown.

These examples can be set with the function Settings (Excel-Lists)

Output

The selected issuing register will be shown.

Select data area



Type of data selection for generating lists.



Selection - User defined selection via window.





Example:



Click here to view.
