Variants

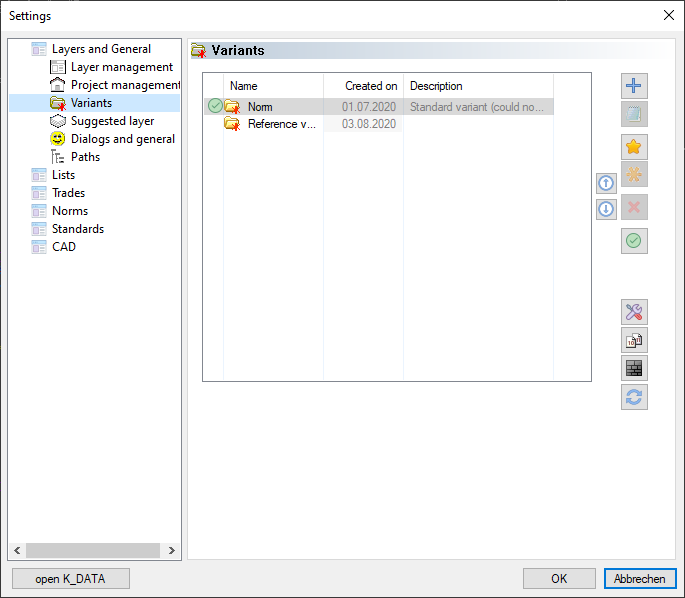

Different variants can be generated in a project.

Necessary for example to compare heat-loads before and after renovation-arrangements.



clip0115

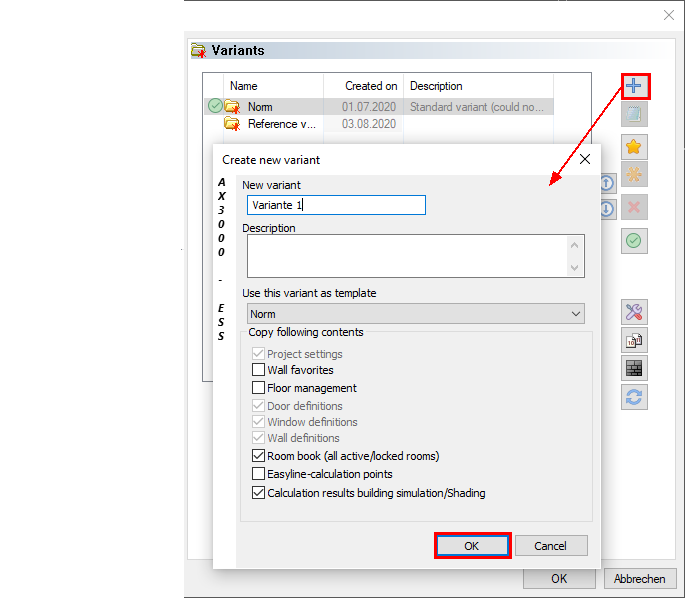

With+ a new variant will be generated.

Choose the name and a short description of the variant.



You can also choose which contents should be copied.



clip0116

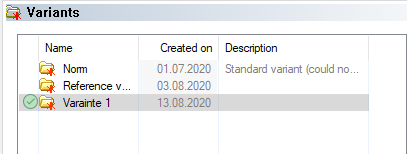

Now the new variant is shown in the list. In the room-manager you can

change between the variants. (see chapter "Room Manager").



einstellungen_varianten
