AX3000 Building Technology ACAD/BCAD



Access to the command over



Command line: _RRANSICHT_NEWS



Assistant: BeschriftungSchnitte | 2D-view | 2d sa

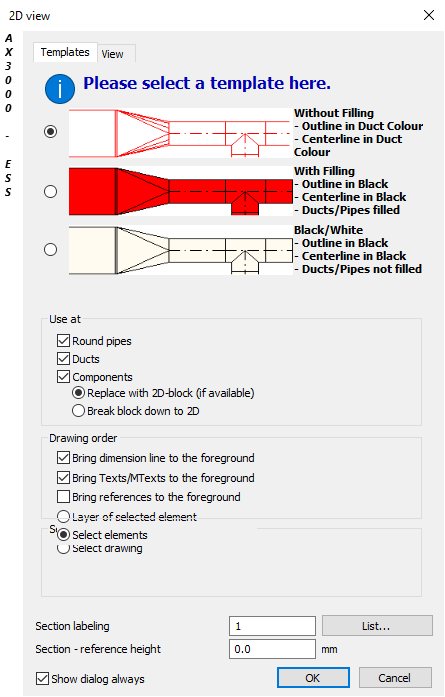

After selecting the function, following Dialogue opens:

2d_ansicht_2_1



Choose templates and view and confirm with "OK".



1. Pick First point:

2d_schnitt_1



2. Pick second point:

2d_schnitt_2



3. Pick direction point:

2d_schnitt_3



4. Pick 2D- placement point (related to the 1st point):



2d_schnitt_4





5. Select entities:

2d_schnitt_6



6.  Confirm with right mouse-button, the section-view is displayed:

2d_schnitt_5
