Add new zone

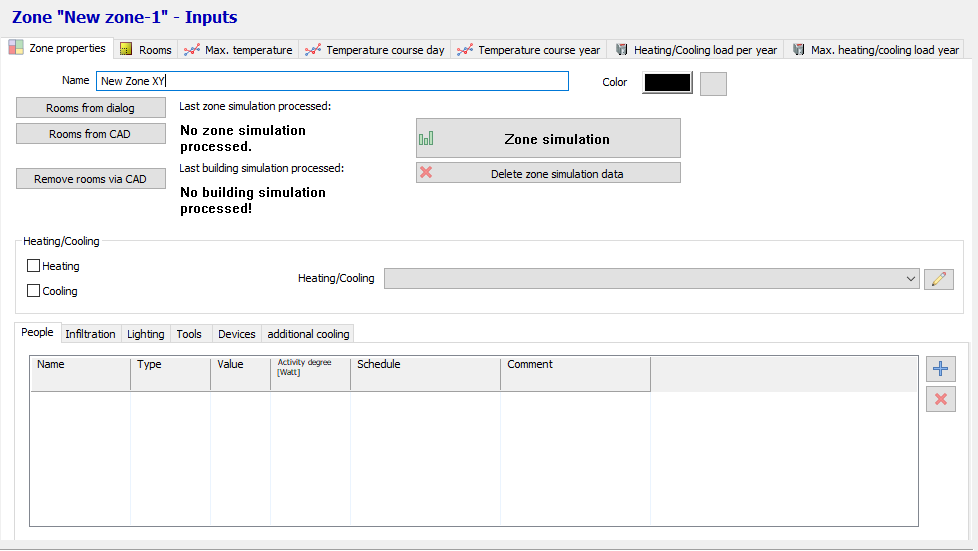

Zone properties

Name:

Enter the name of the new zone.

Color:

Here you can select the color for the new zone.

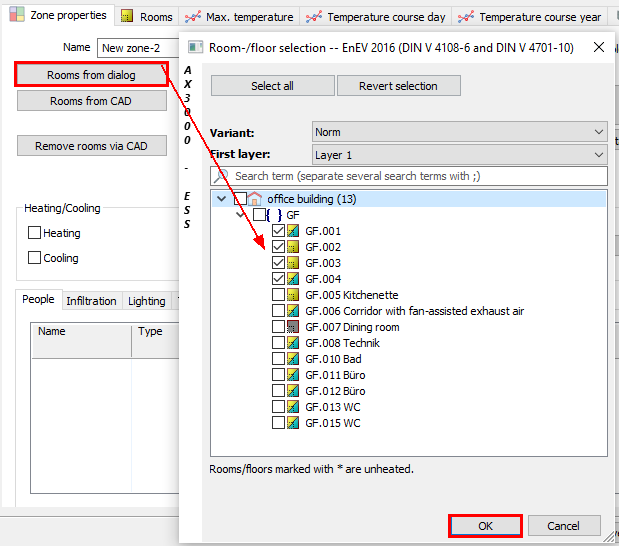

Rooms from Dialogue:

Rooms from CAD:

Select the rooms per picking the room-symbol in the drawing.

Confirm with right mouse-button after picking the ones you need.

Remove rooms via CAD:

Select the rooms you want to remove per picking the room-symbol in the drawing.

Confirm with right mouse-button.

Zone simulation:

Heating/Cooling:

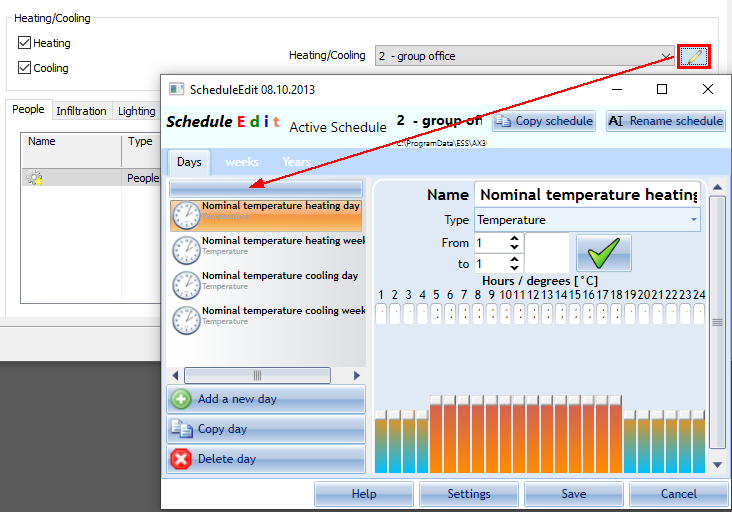

Here you can choose the Shedules for Heating/Cooling.

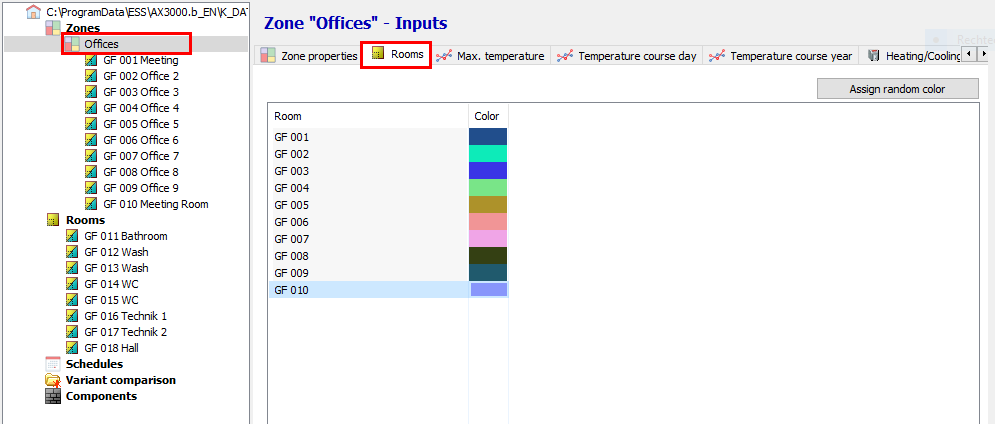

Rooms

Assign random color:

Changes the colors for visualisation.

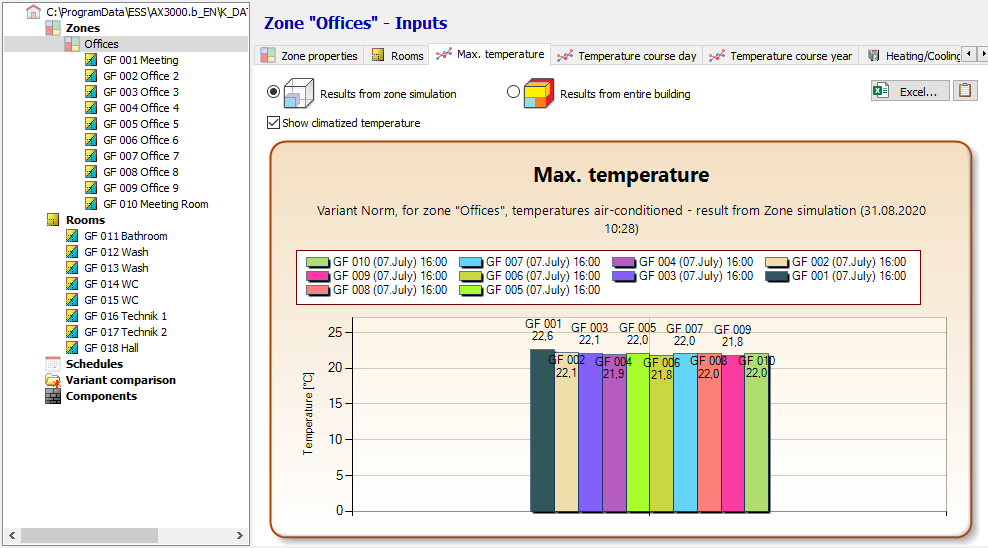

Max.temperature

Shows the max. temperature for the picked zone.

If deactivated, the not-climatized temperatures are shown.

Prints an overview with max. zone temperatures

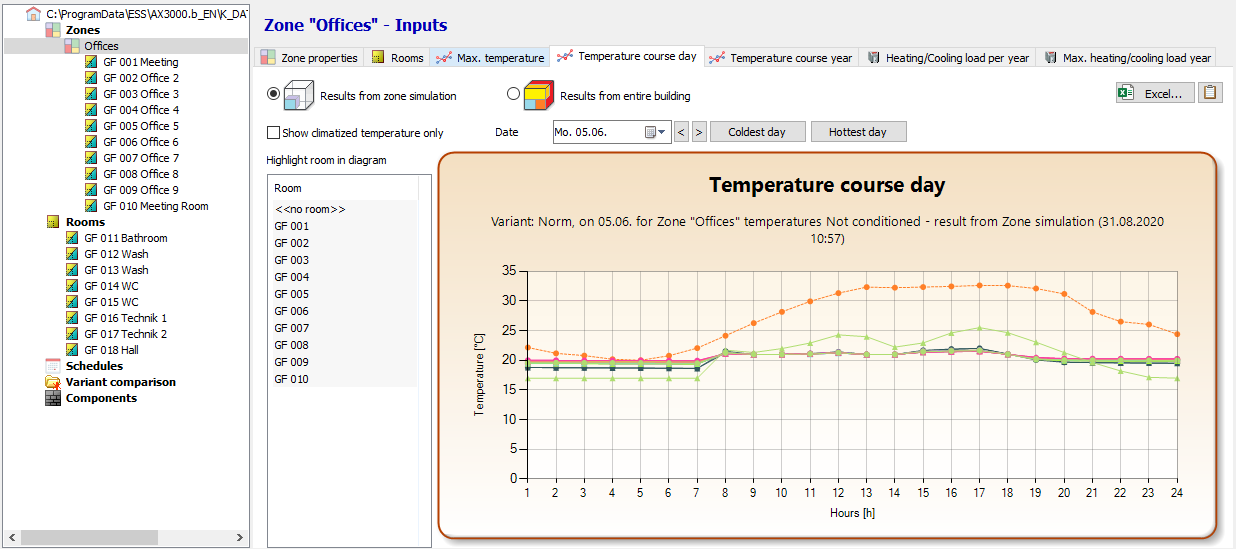

Temperature course day

Shows the Temperature course for the activated zone on every single day.

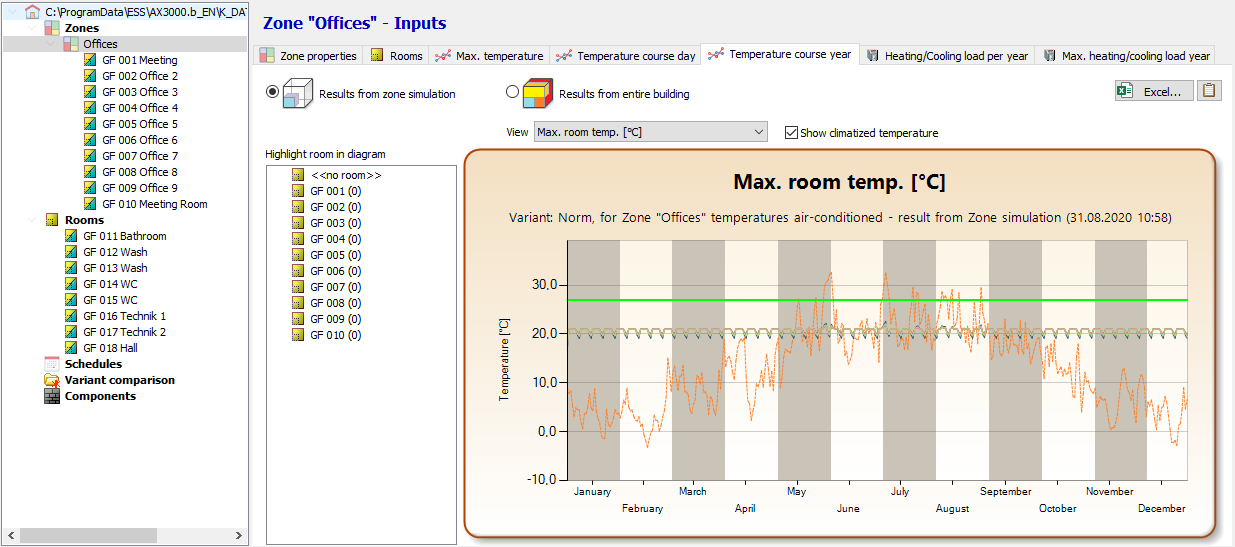

Temperature course year

Shows the temperature course for the whole year.

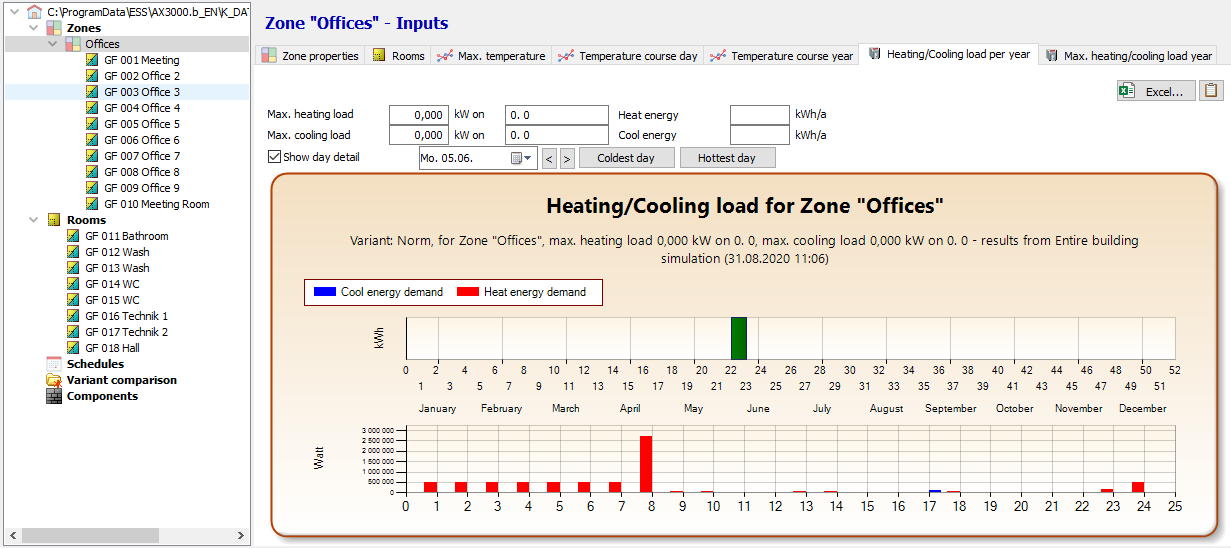

Heating/Cooling load per year

Shows the Heating/Cooling load per year for the activated zone.

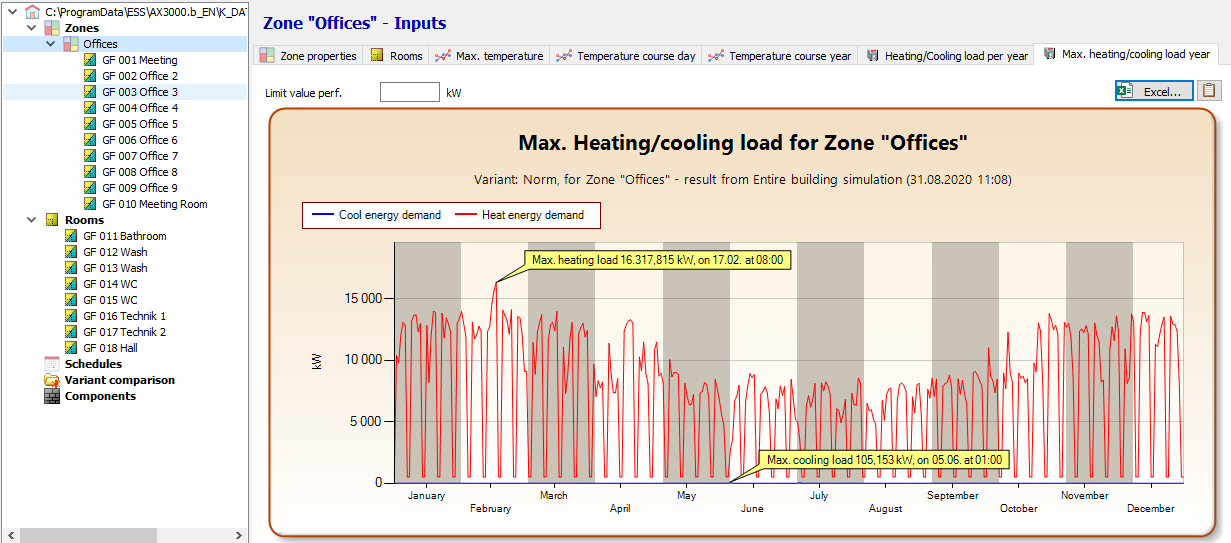

Max. heating/cooling load year

Shows the max. Heating/Cooling load for the activated zone.
