With this function you can connect load points to a zone distributor.
Access to the command over: |
AutoCAD/BricsCAD |
|
|---|---|
Command line: _ZONENCONN
Assistant: Assistant: Assistant: |
After activating the function pick the distributor and afterwards the radiators in the order of their connection.

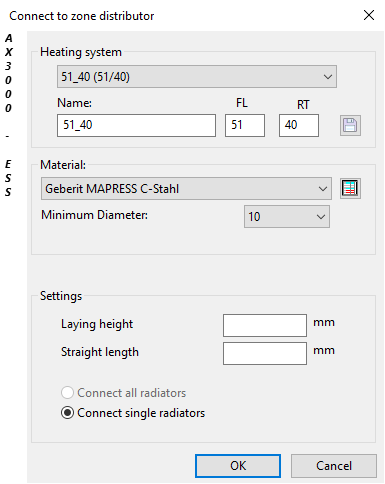

Dialogue-Options
Option |
Description |
|---|---|
Heating system
|
Here the flow and the return temperature will be entered. You can use, create or delete predefined systems.
To create a heating system, use the fields name, FL and RT. Enter the name, the flow and return temperature and click Save ( To delete a system select it in the list and click onto the button Delete (
|
Settings
|
Here you can define general settings to the connection.
Placement height: Placement height of the pipes as absolute height.
Straight length: Distance between distributor and the infelction point of the pipes. |
).
).
