Create attribute definitions

                                Access to the command over:

Command line: _SET_ATT_DEF

Assistant: | Labeling |

Attribute

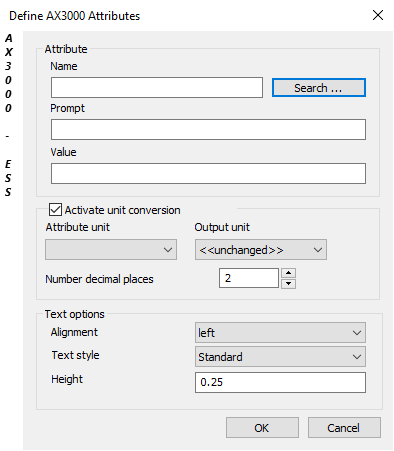

All important information for the attribute has to be entered here.

Description:

Name of Attribute

Prompt:

Attribute entry command

Value:

Suggestion value.

Search ...

With this function you can choose from the AX3000 Standard Attributes.

Activate unit conversion

Here the existing unit from an attribute can be converted to another unit.
Example:

Radiator-performance from Watt to liter/hour.

Text options

This function influences the attribute view.

ATTENTION!

These lebeling-blocks must be saved in the derictory %\k_data\blocks\descr\*.*

Only certificated CAD administrators are allowed to create or edit these files.

ATTENTION!

If you want to convert units, the definition must be used consistetly in the drawing.

Parts must not be labeled differently.

Example:

If the measurements of a radiator is labeled with "1000/600/100" and on another with "TYP22 - 1000/600", the conversion does not work.
