automatic elbow



This function is used to connect two ducts/pipes with an elbow.





                                Access to the command over:



AutoCAD/BricsCAD





Command line: _AUTOBOGEN



Assistant: lueftung_gew | Ventilation Service | autobogen

Assistant: heiz3 | Heating Construction | autobogen

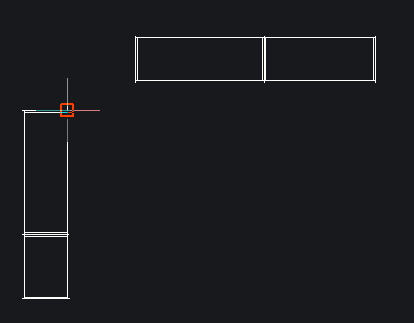

After executing the function pick the first duct/pipe.

auto_bogen

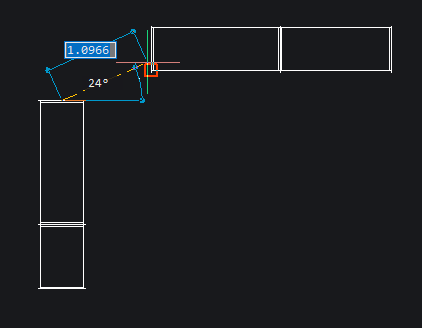

Pick th second duct/pipe.

auto_bogen1

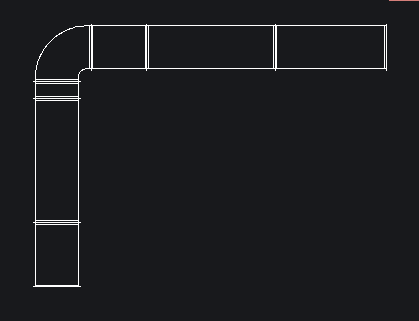

An automatically elbow is drawn.

auto_bogen2
