Easyline Starting-point Sewage

Sets a waste water start point for the Easyline-System.

Access to the command over:

AutoCAD/BricsCAD

Command line: _SETAP_AW

Assistant: | Sewage Easyline |

After executing the function place one or more start points for the calculation in the drawing.

Start points can be copied or deleted after placement with the standard AutoCAD functions.

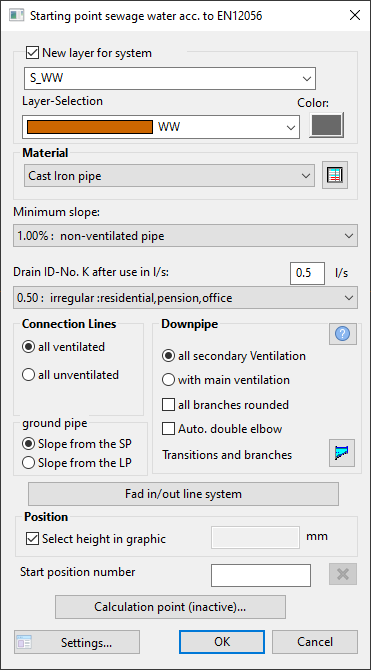

AW_AP

Dialogue-Options

Option	Description
New Layer for system	At deactivated Checkbox: pipework is set in the active layer. At activated Checkbox: an new layer can be set for the pipework to be calculated. The layer can be selected and modified from the layer-selection with its description. The color can also be modified. The settings Trade Definitions are valid.
Material	Selects the Pipe Material.
Minimum slope	The desired min. slope can be selected. Select from the following table:
Drain ID-No. K after use in [l/s]	This ID gives the type and useage in the building (simultaneous factor)
Connection lines	The type of ventilation can be set. This setting serves in the selection from the calculation tables EN12056.
Downpipe	The type of waste water line ventilation can be set. This setting serves in the selection from the calculation tables EN12056.
Position	By activated function 'select height in drawing', the Easyline starting point is set on the picked height on the drawing.
