Easyline Sewage

Create 3D elements

A pipework is generated by calling up the function and choosing all lines, that need to be calculated, in a selection-window.

Additional there is the possibility to pick only the starting-points to calculate the whole system.

If you choose only starting-points, it is necessary that all load-points are displayed at the screen (Block-layer and Element-layer).

Show result list

A waste water calculation will be done and issued in Excel (without slope).

Activate Dialogue Show Easyline

Function to check and change Easyline-systems.

Calculate with slope

This function calculates the pipework  in consideration of the slope.

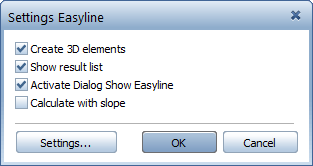

Settings

Here you can make settings for Easyline.
