Reference Commands > E > Easyline

 Zurück  Weiter

Show Easyline



Function to check and change calculated Easyline systems.



                                Access to the command over:



AutoCAD/BricsCAD

Allplan



Command line: _EASYLINESHOW



Assistant: lueftung_gew|Ventilation Easyline | easyline_show

Assistant: heizung_gew |Heating Easyline | easyline_show

Assistant: saniicon |Sanitary Easyline | easyline_show

Assistant: abwasser_gew |Ventilation Easyline | easyline_show



Toolbar: Heating | Heating Service | Allplan_H_11

Toolbar: Ventilation | Ventilation Service | Allplan_H_11







After calling up the function a Dialogue opens:

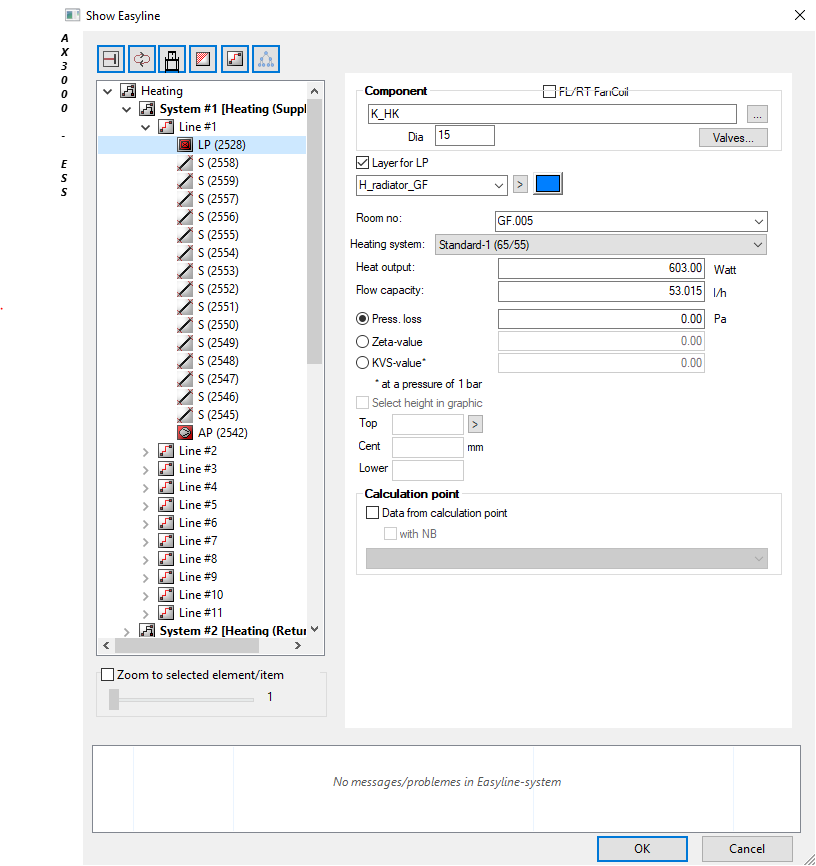

L_VD_Show-easyline



Dialogue-Options



Display

showeasy1 - Show end lines on/off

showeasy2 - Show loops on/off

showeasy3 - Show line informations on/off

showeasy4 - Show material informations on/off

fixierte Stränge im Baum darstellen - Show fixed tracks in tree

showeasy7 - Show all loadpoint connections

Tree Structure

All systems, start points, load points or linegroups and unlinked load points can be selected.

If, for example, a Easyline Start point is selected, the corresponding tab to control or edit the parameters will be activated.

Zoom

The element selected in the tree structure will be zoomed in. The zoom-factor can be adjusted with the slidebar



Example:

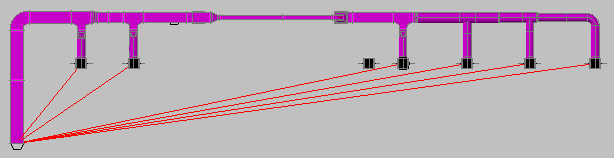

All Loadpoint connetions  are shown:



Showeasy5
