Straight electrical cable lines or cable-trays can be drawn.

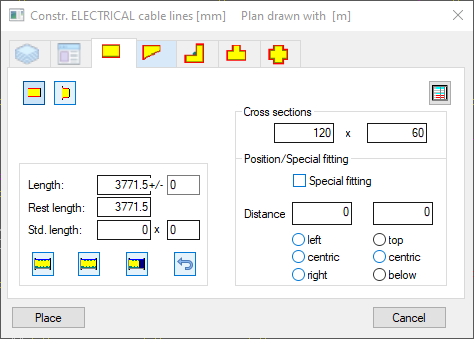

Dialogue-Options
Option |
Description |
|
|---|---|---|
Cable line |
|
The last part of the cable line will be placed. |
Branch |
|
The last part of the cable line will be set as a branch. |
Cross Section |
|
The cross section can be entered here. |
Position / Special Fitting
|
|
Position describes the cable line direction to a wall, when both points lay on a line or wall.
Distance: The both distance inputs are responsible for the horizontal and the vertical distance from positioning fields.
Position: left flush with left edge centric center along horizontal right flush with right edge
top flush with top edge centric center along vertical below flush with bottom edge |
Selected length Rest length Std. length |
||
Functional fields |
(Place, Continuous construction, Cancel) |
