Transition

With this function, a symmetrical transition will be set.

With this function, an asymmetrical transition will be set.

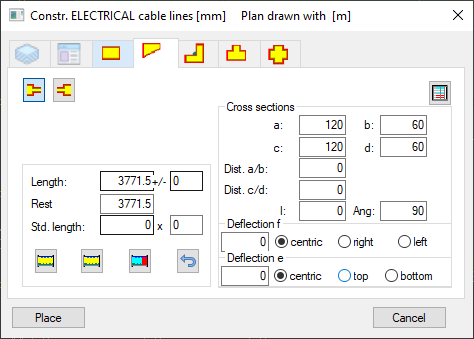

Cross sections

Serve the entry of each cross section and finishing parameter.

a/b:

The starting cross section (a/b) of the fitting as entered in Starting Values is shown.

c/d:

The final cross section of constructed fitting is entered.

Distance a/b:

To mount the connection profile at fitting entry (cross section a/b) for the corresponding straight duct.

Distance c/d:

To mount the connection profile at fitting exit (cross section c/d) for the corresponding straight duct.

L/Ang:

The special fitting length is taken from the cross sections and manufacturing parameters with an angle of 30°.

Deflection f

According to DIN Norm, the given horizontal transition projection (right edge to right = +f).

This projection can be centrical, left straight, right straight or custom selected.

Deflection e

According to DIN Norm, the given vertical transition projection (top edge = +e).

This projection can be centrical, top straight, bottom straight or manually selected.

Selected length

Rest length

Std. length

See chapter "Length"

Functional fields

(Place, Continuous construction, Cancel)

See chapter "Functional fields"
