Use this function to draw symmetrical and asymmetrical elbows,
as well as symmetrical, asymmetrical and angled knees.

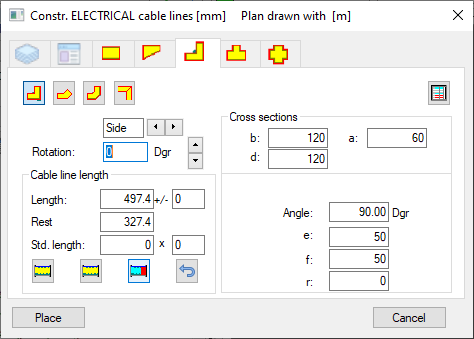

Dialogue-Options
Option |
Description |
|
|---|---|---|
90° Elbow |
|
A 90° elbow can be drawn with this function. |
45° Elbow |
|
A 45° elbow can be drawn with this function. |
Angled Elbow |
|
An angled elbow can be drawn with this function. |
Mitered Elbow |
|
A mitered elbow can be drawn with this function. |
Alignment |
Side/Center: Side ... Bow ends with back edge at 2nd system-point. Center... Bow ends centric at 2nd system-point.
Rotation: Shows the new direction of construction in degrees. The direction can be manually rotated for rectangular ducts with these buttons in four main directions (up, down, left, right). |
|
Cross sections |
|
All elbow parameters are shown and modified here. The starting width and height are taken from the previous part. The end width can be manually entered. |
Dimensions |
|
Angle: The angle for the special fitting.
e: The straight dimension of the inner edge at beginning of fitting for connection profile.
f: The straight dimension of the inner edge at end of fitting for connection profile.
r: The inner radius of elbow or knee. |
Selected length Rest length Std. length |
||
Functional fields |
(Place, Continuous construction, Cancel) |
