Use this function to draw through-flow tees.
The tee consists out of a through-piece and a branch.

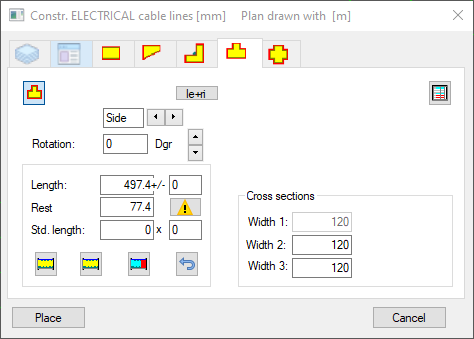

Dialogue-Options
Option |
Description |
|
|---|---|---|
Straight Tee |
|
Draws a symmetrical tee. |
Alignment |
Side/Center: Side ... Bow ends with back edge at 2nd system-point. Center... Bow ends centric at 2nd system-point.
Rotation: Shows the construction direction in degrees. The direction can be manually rotated for rectangular ducts with these buttons
With this function you can change between a through-fitting tee and a cross fitting tee. |
|

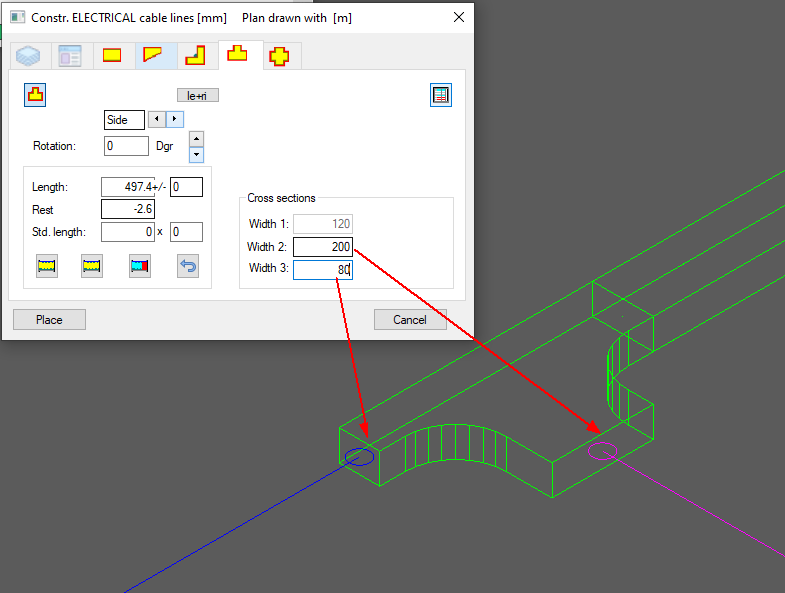

Cross sections |
|
|
Selected length Rest length Std. length |
||
Functional fields |
(Place, Continuous construction, Cancel) |
