X-piece

X-piece

Draws a symmetrical x-piece in through type.

Alignment

Side/Center:

Side    ... Bow ends with back edge at 2nd system-point.

Center... Bow ends centric at 2nd system-point.

Rotation:

Shows the construction direction in degrees.

The direction can be manually rotated for rectangular ducts with these buttons in four main directions (up, down, left, right).

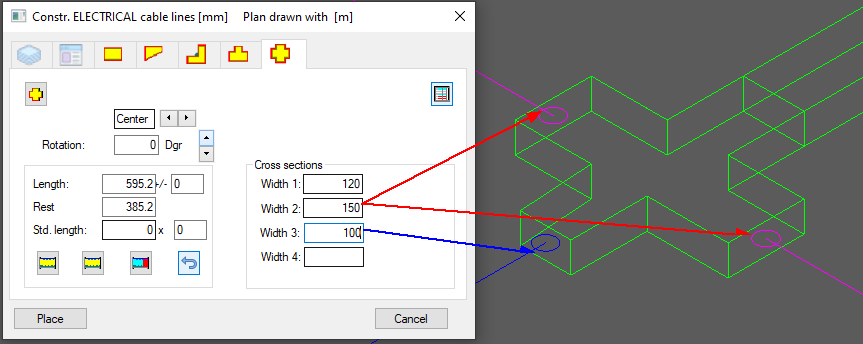

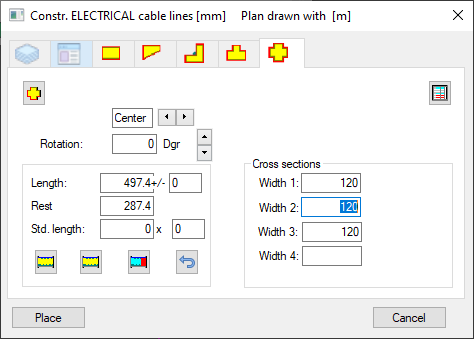

Cross Sections

Selected length

Rest length

Std. length

See chapter "Length"

Functional fields

(Place, Continuous construction, Cancel)

See chapter "Functional fields"
