Define/Change roof surfaces



                                Access to the command over:



AutoCAD/BricsCAD







Command line: _CHANGEROOF



Assistant: raumbuch_gew | Heating load | dferf









After defining a room or a floor you can define roof surfaces.



Attention!

The roof-surface has to be explorated with the necessary points for the height-definition!





df_6

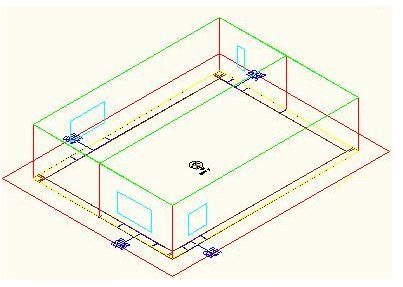

•Choose the room-symbol:

df_7

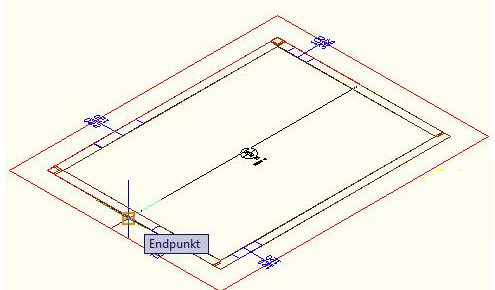

•Define the different roof-surfaces by explorating the boundary-points.

df_5



•With „Change room heights“ the shape of the roof can be defined.

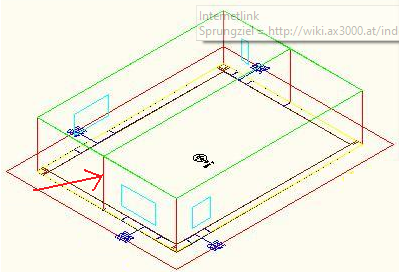

•Therefore choose the according flange:

df_1

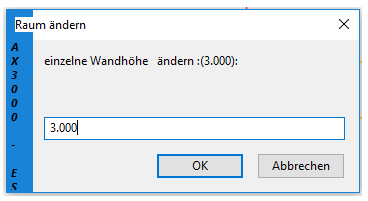

•In the following Dialogue you can insert the new height:

df_2

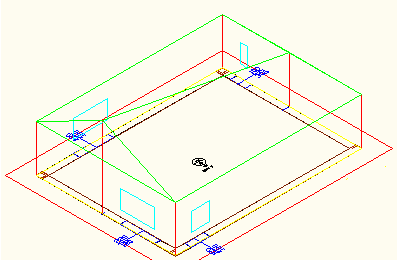

•The height is shown according to your inputs:

df_3

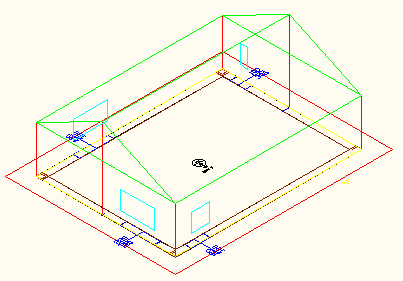

df_4



In the Room-Manager the roof-surfaces and the volume are calculated new.





Attention!

You have to delete the former ceilings in the according rooms!!!
