Show pressure loss on/off

With this function you get the possibility to show the pressure drop through the system graphically.

First you have to calculate the system with Easyline.

The same button is used to turn the function on or off.

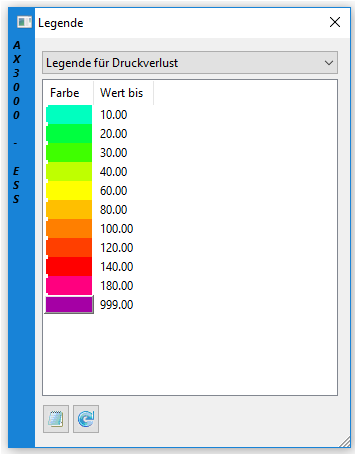

If it is activated you will see a Dialogue with different colors, according to the speed.

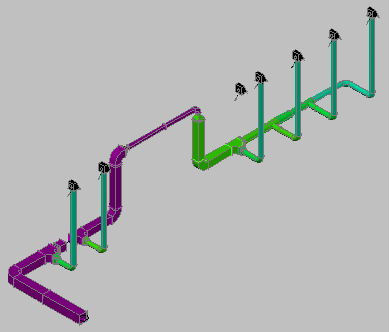

Also the EasyLine-ducts are colored in the caculated pressure drop.

Example:

.
